<< B >> Alternator Pulley Removal

CAUTION: Perform operation carefully, to prevent damaging the rotor.

Clamp the rotor in a vise with the pulley facing up to remove the pulley.

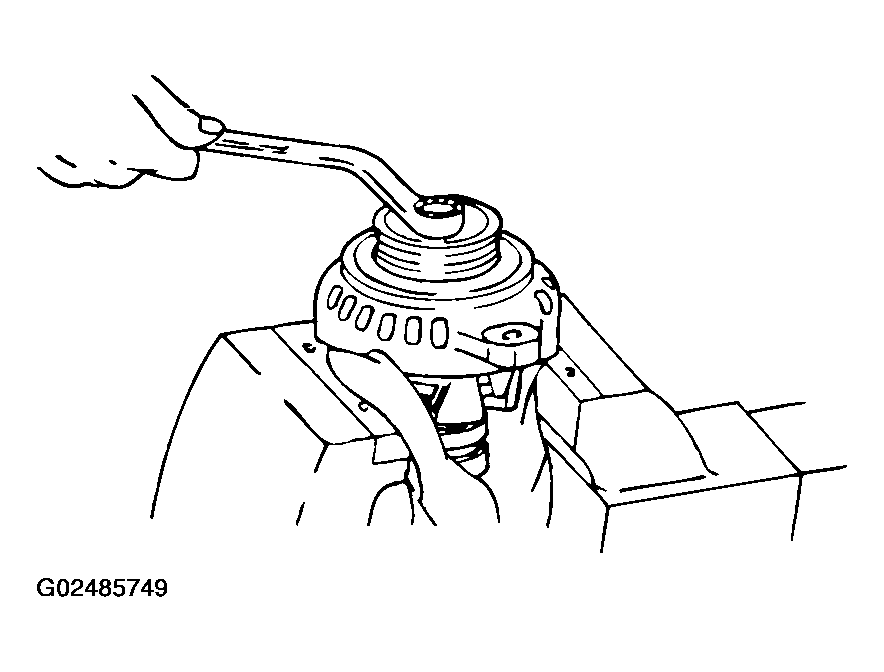

Fig 1: Clamping Rotor In Vise With Pulley
G02485749Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
