General Specifications

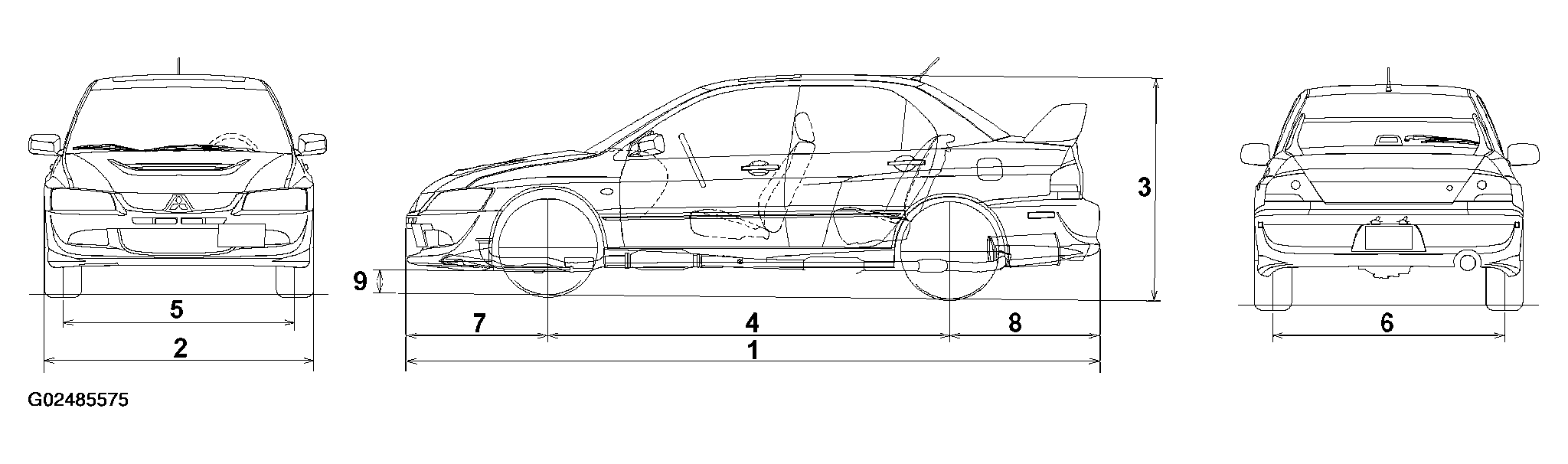

Fig 1: General Specifications
G02485575Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

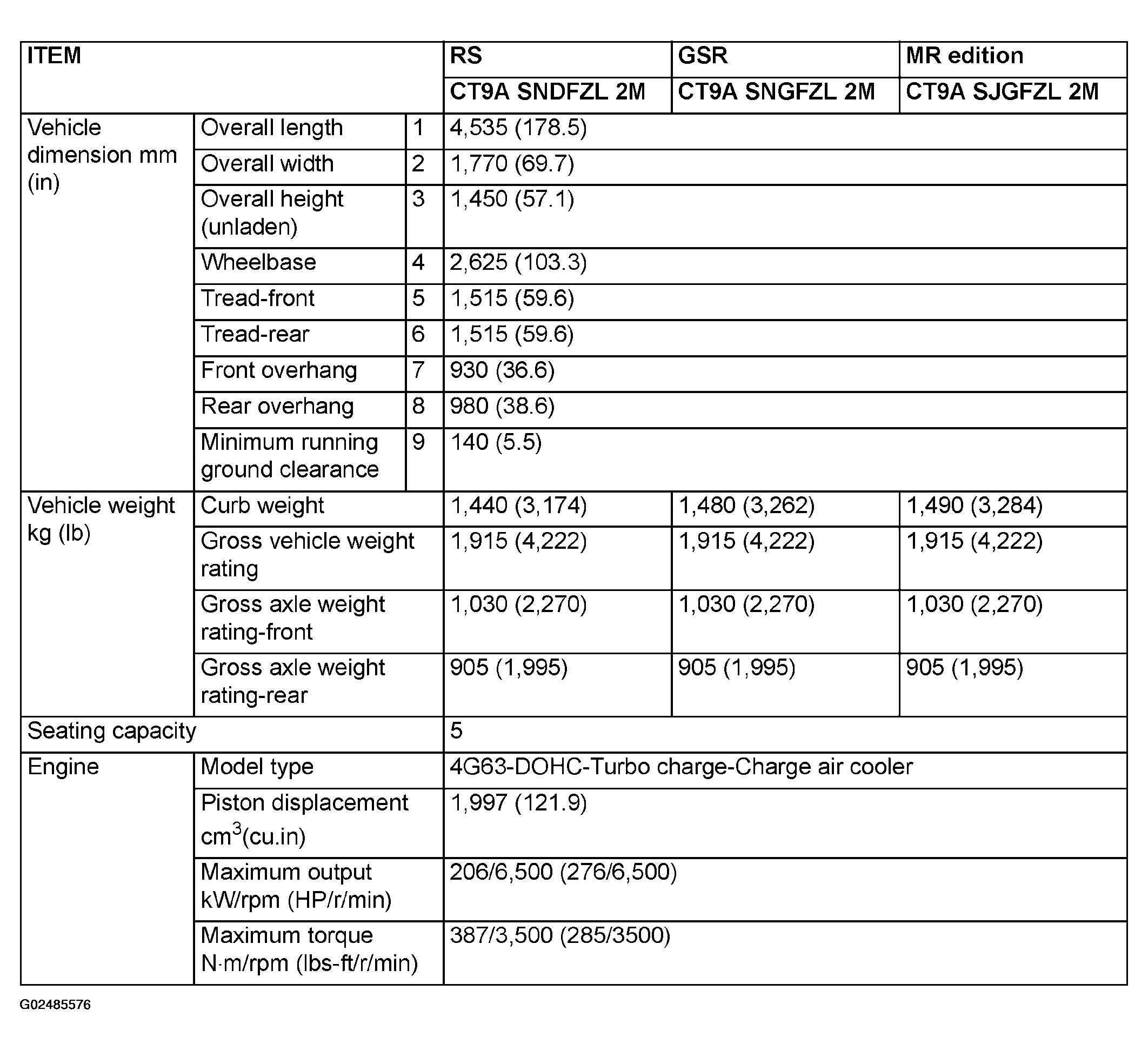

Fig 2: Data Specifications (1 Of 2)
G02485576Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

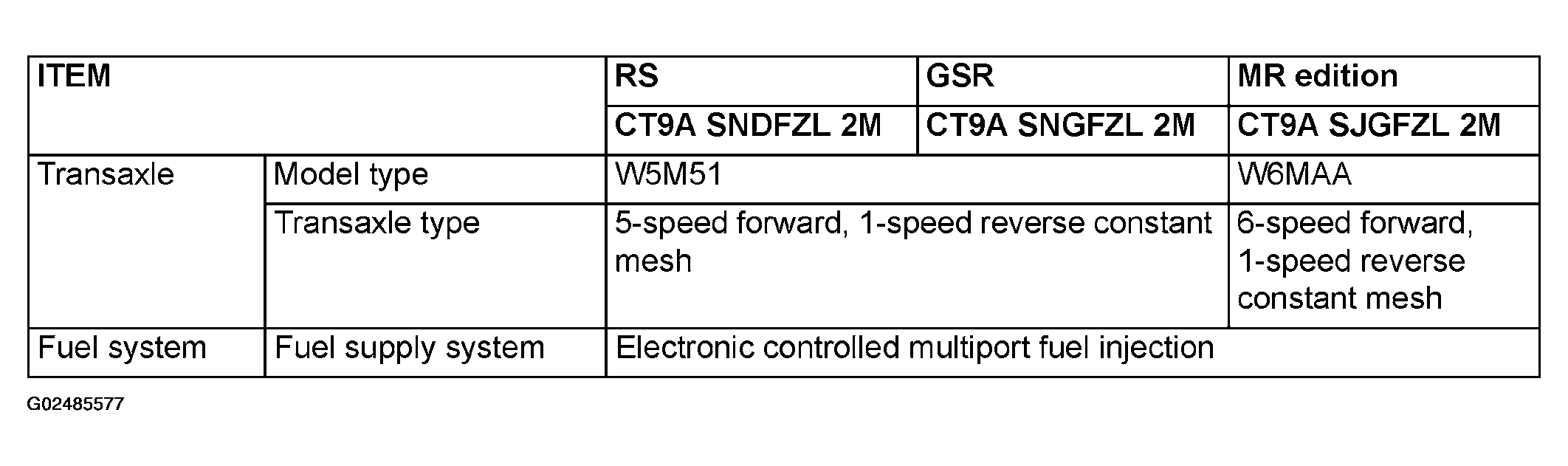

Fig 3: Data Specifications (2 Of 2)
G02485577Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
