INSPECTION PROCEDURE 10: Condenser Fan does not Operate.: Notes

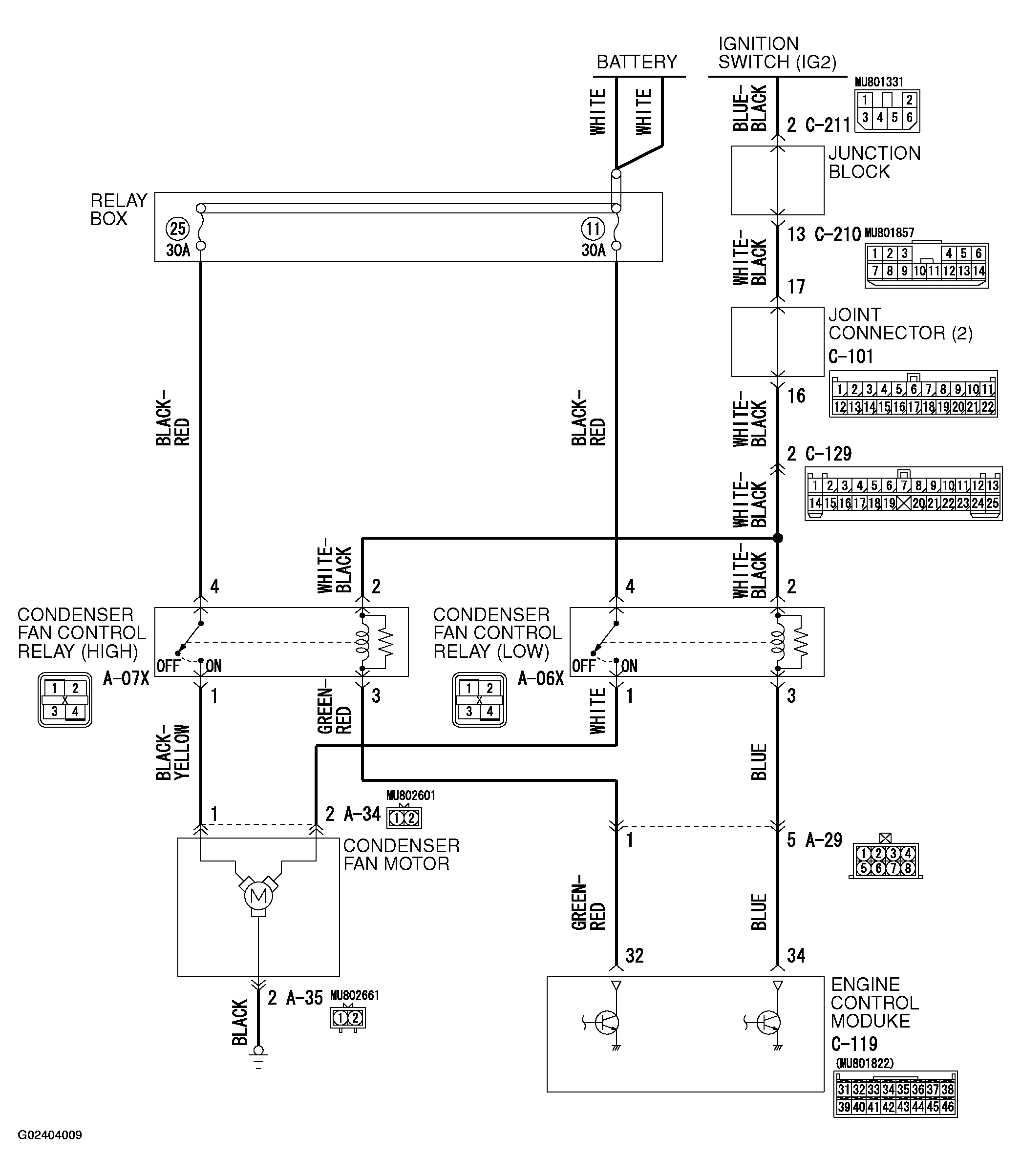

Fig 1: Condenser Fan Motor - Circuit Diagram
G02404009Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

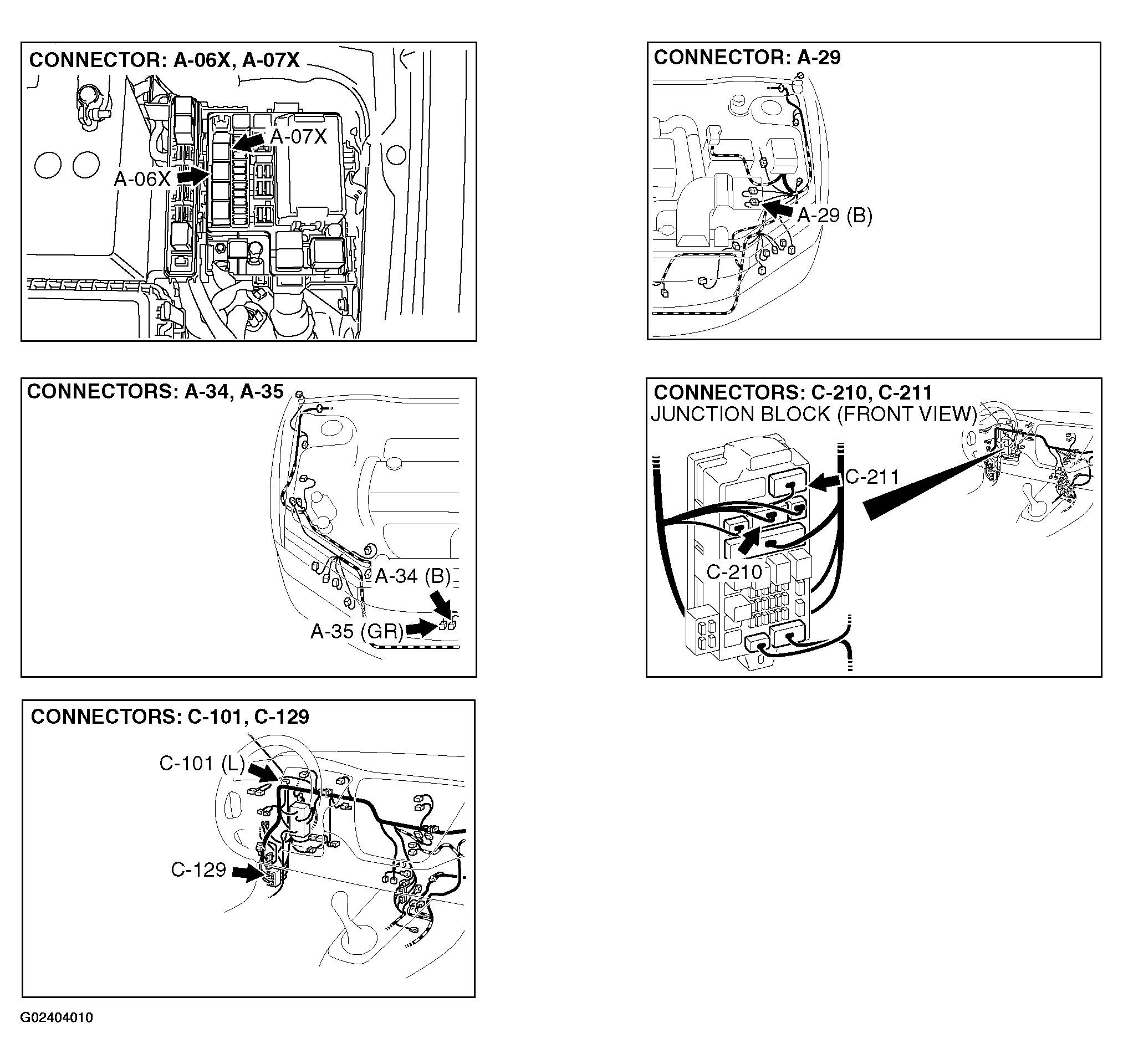

Fig 2: Identifying Connector Terminal Of C-210 And C-211
G02404010Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
