<< C >> Steering Wheel-Driver's Air Bag Module Assembly Removal

WARNING:

The air bag module must not be measured with such equipment as an ohmmeter, nor disassembled.
The removed air bag module should be stored in a clean, dry place with the deployment surface facing up.

By sliding the A section (in the figure) of the air bag module connector in the arrow direction, disconnect the connector.

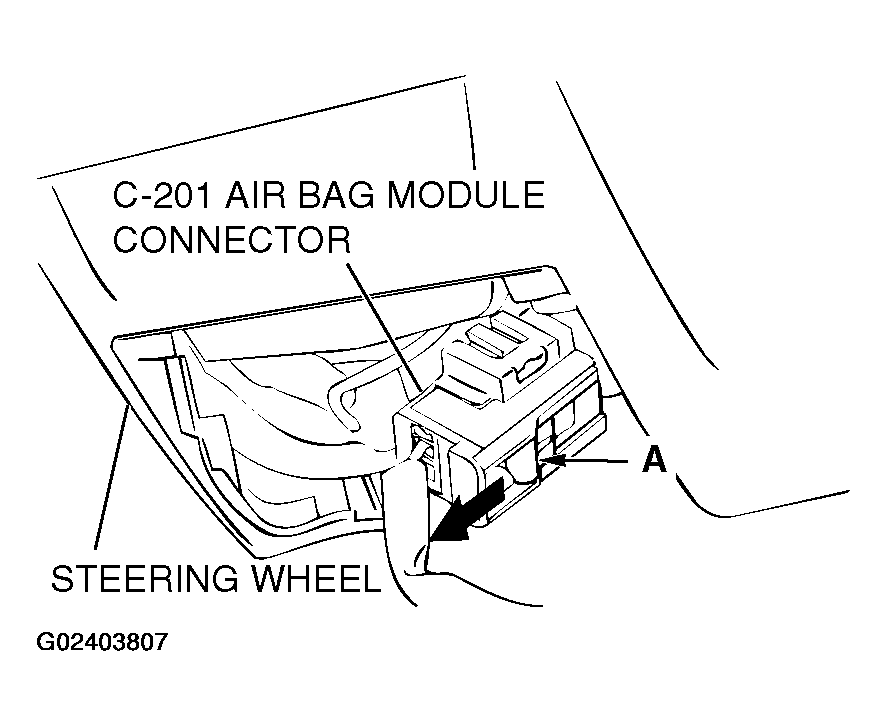

Fig 1: Disconnecting Air Bag Module Connector C-201
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Insert the hexagonal bit socket into the arrow section in the figure. Completely loosen the bolt, and then remove the steering wheel air bag module assembly.
NOTE: Use a hexagonal bit socket or a hexagonal wrench having an effective length of 75 mm (0.2 inches) or more in the hexagonal section and diameter of 8 mm or more.

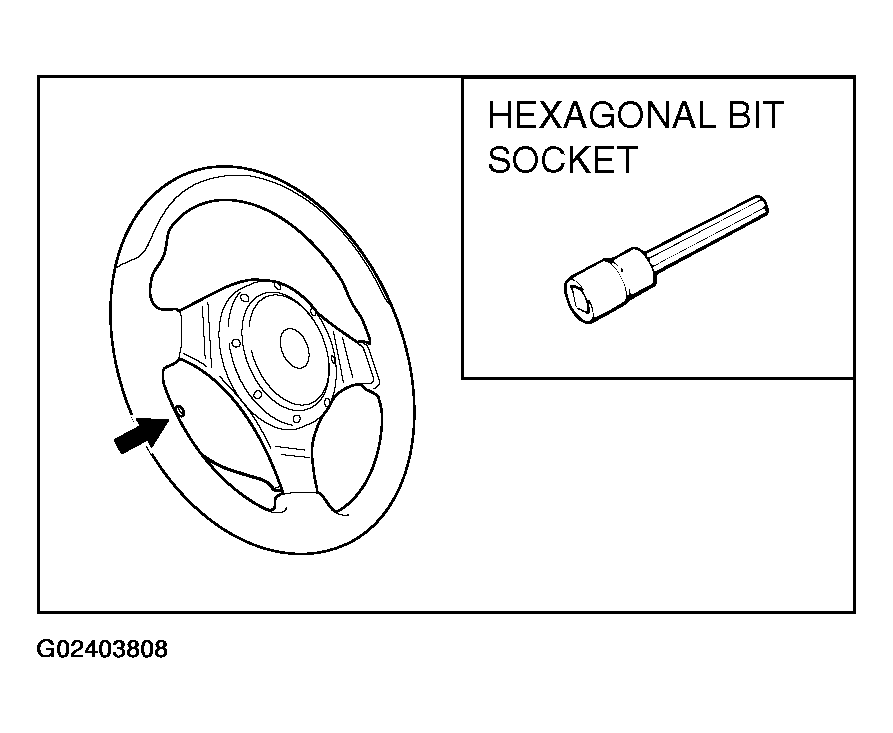

Fig 2: Inserting Hexagonal Bit Socket Into Arrow Section
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
