>>D<< Oil Seal/Rack Bushing Installation

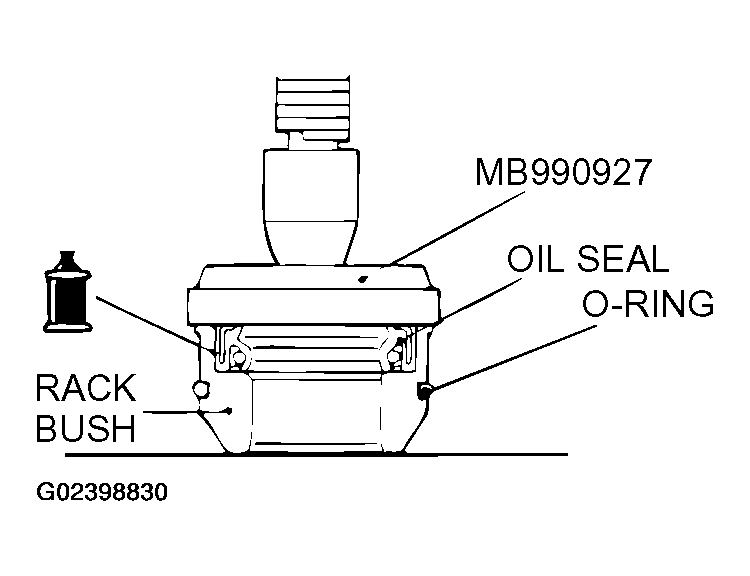

Apply GENUINE MITSUBISHI POWER STEERING FLUID to the outer surface of the oil seal. Using special tool MB990927, press in the oil seal until it is flush with the bushing end face.

Fig 1: Applying Genuine Mitsubishi Power Steering Fluid To Outer Surface Of Oil Seal
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Apply GENUINE MITSUBISHI POWER STEERING FLUID to the oil seal inner surface and the O-ring.

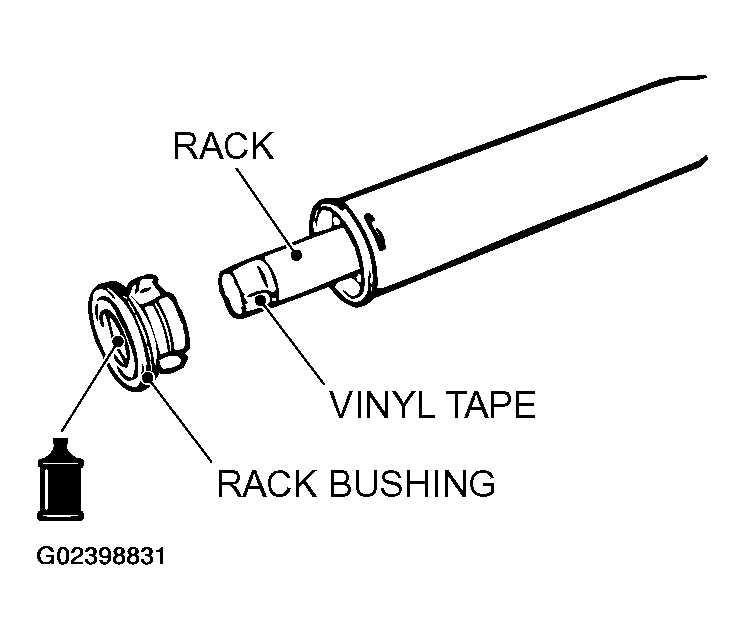

Wrap the rack end with plastic tape, and push the rack bushing onto the rack.

Fig 2: Applying Genuine Mitsubishi Power Steering Fluid To Oil Seal Inner Surface And O-Ring
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
