>>O<< Tie Rod End/Jam Nut Installation

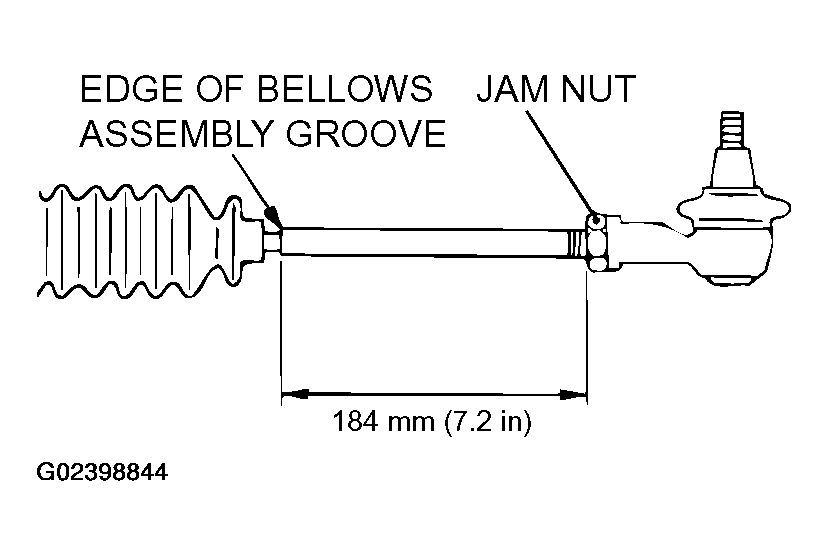

Screw in the tie rod end to achieve the right and left length as illustrated. Lock with the jam nut.
NOTE:
The locking nut must be tightened securely only after the power steering gear box and linkage are installed to the vehicle and toe-in is adjusted.
