Lubrication And Sealing Points

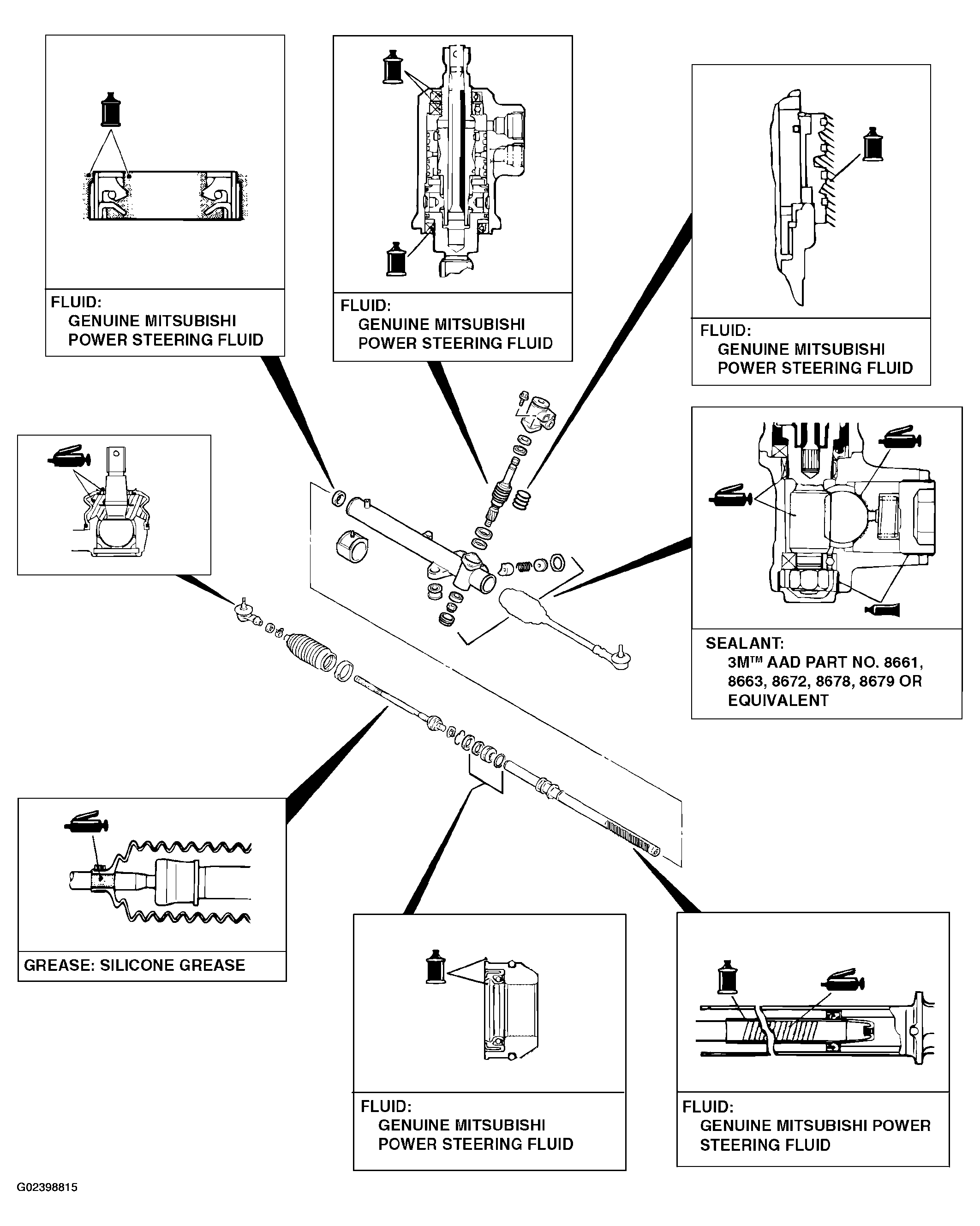

Fig 1: Identifying Power Steering Gear Box And Linkage Lubrication And Sealing Points Components Location
G02398815Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
