<< B >> Steering Wheel And Airbag Module Assembly Removal

  1. By sliding section A of the clock spring connector as shown in the illustration in the arrow direction, disconnect the connector.

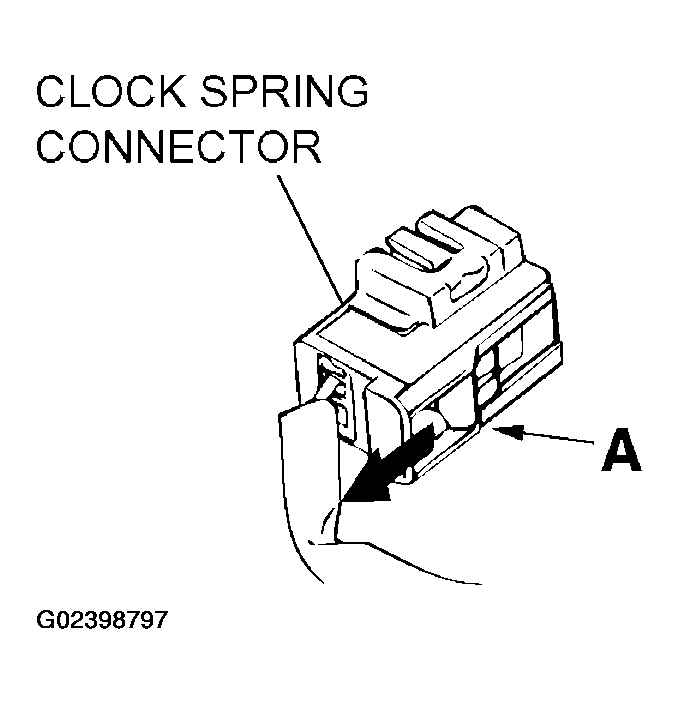

    Fig 1: Pulling Clock Spring Connector
    G02398797Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Loosen the bolt completely. Then, remove the steering wheel and airbag module assembly.
    NOTE: Use a hexagonal bit socket or a hexagonal wrench having an effective length of 75 mm (3.0 inches) or more in the hexagonal section and the diameter of 8 mm (0.31 inches) or more.

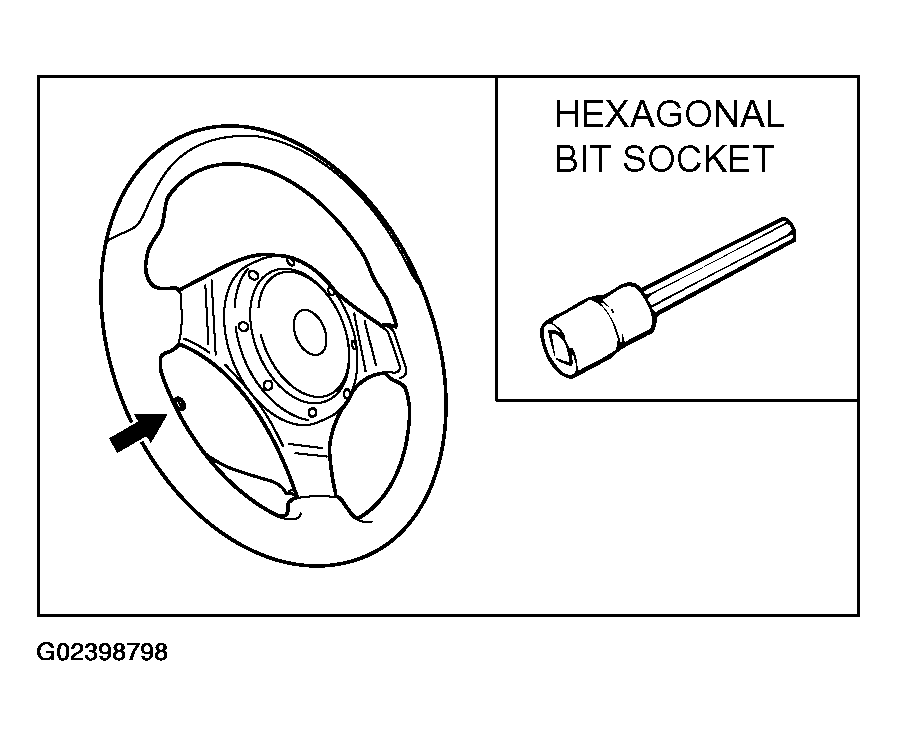

    Fig 2: Identifying Special Tools (Hexagonal Bit Socket)
    G02398798Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
