Front Wheel Alignment Check And Adjustment: Toe-In

Standard value: 0 +/- 2 mm (0 +/- 0.08 inch)

1. Adjust the toe-in by undoing the clip and jam nut, and turning the left and right tie rod turnbuckles by the same amount (in opposite directions).
   NOTE: The toe will move out as the left turnbuckle is turned toward the front of the vehicle and the right turnbuckle is turned toward the rear of the vehicle.
2. Install the clip and tighten the jam nut to the specified torque.

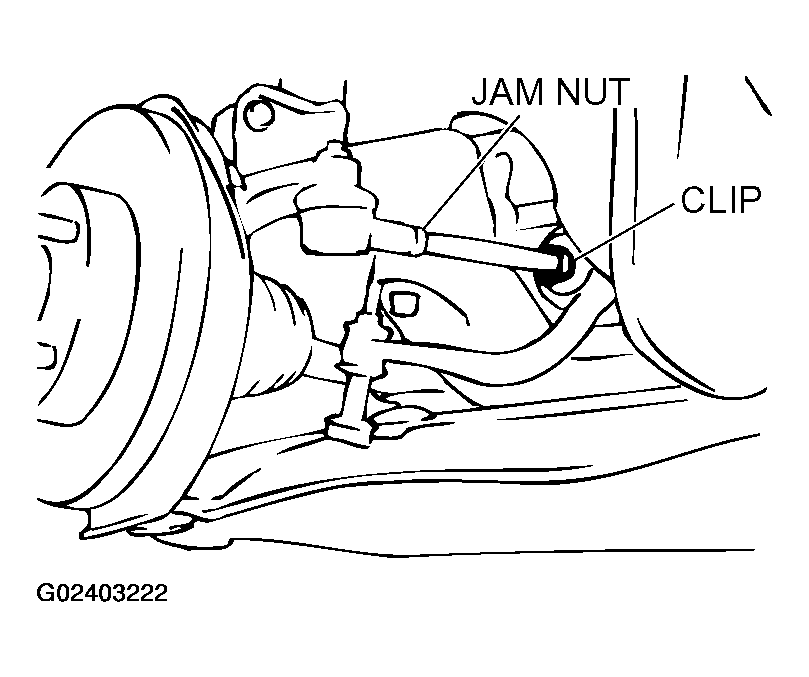

   Fig 1: Tightening Jam Nut To Specified Torque

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   • Tightening torque: 52 +/- 2 N.m (38 +/- 2 ft-lb)
3. Confirm that the toe-in is at the standard value.
4. Use a turning radius gauge to check that the steering angle is at the standard value.
   • Standard value:
   STANDARD VALUE SPECIFICATION



   Inner wheel	31°45' +/- 1°30'
   Outer wheel (for reference)	27°15'
