DTC 41, 42: Throttle Position Sensor System: Notes

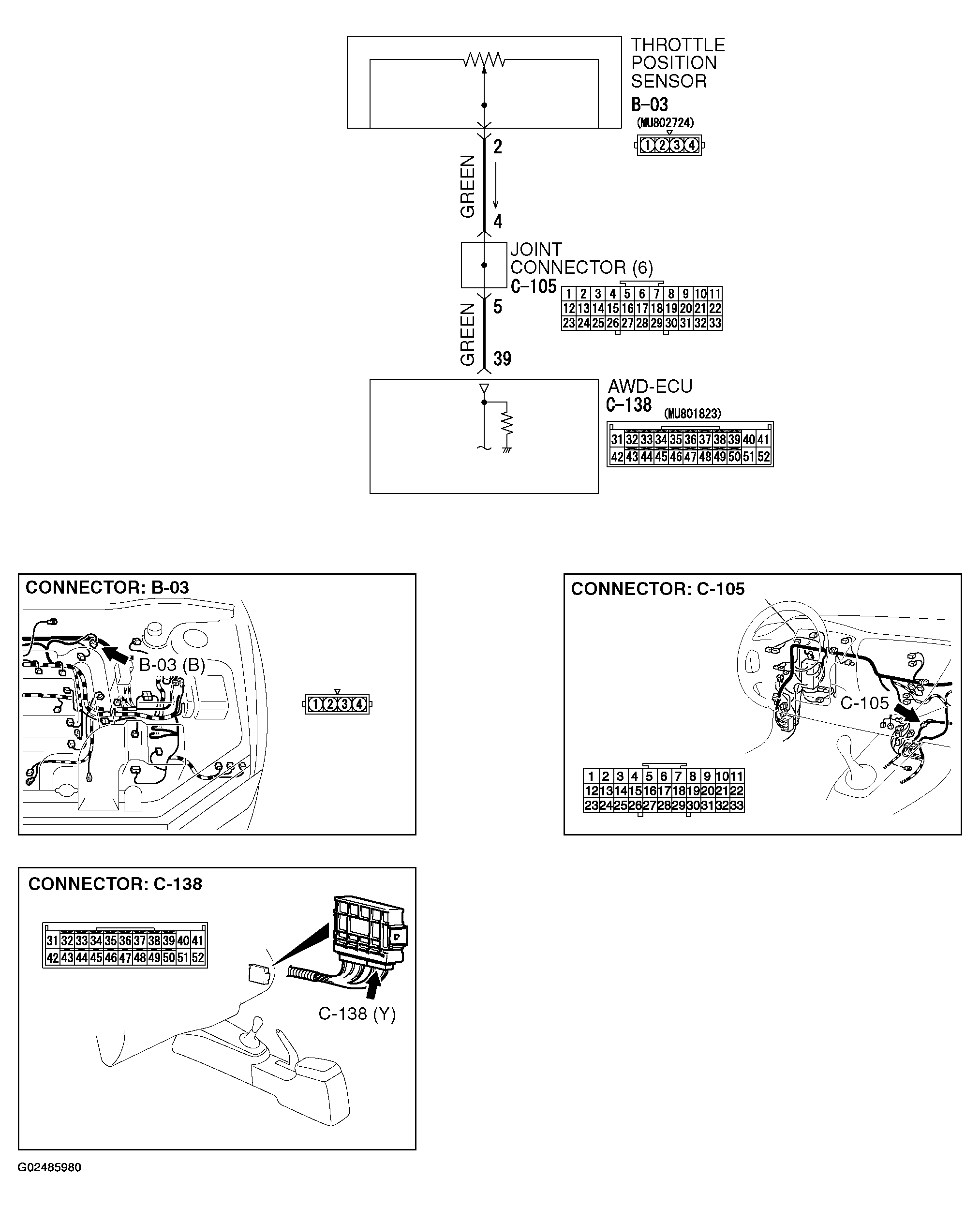

Fig 1: Throttle Position Sensor System Circuit - Wiring Diagram
G02485980Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
