DTC 56: G-sensor (Lateral) System (Open Circuit or Short Circuit): Notes

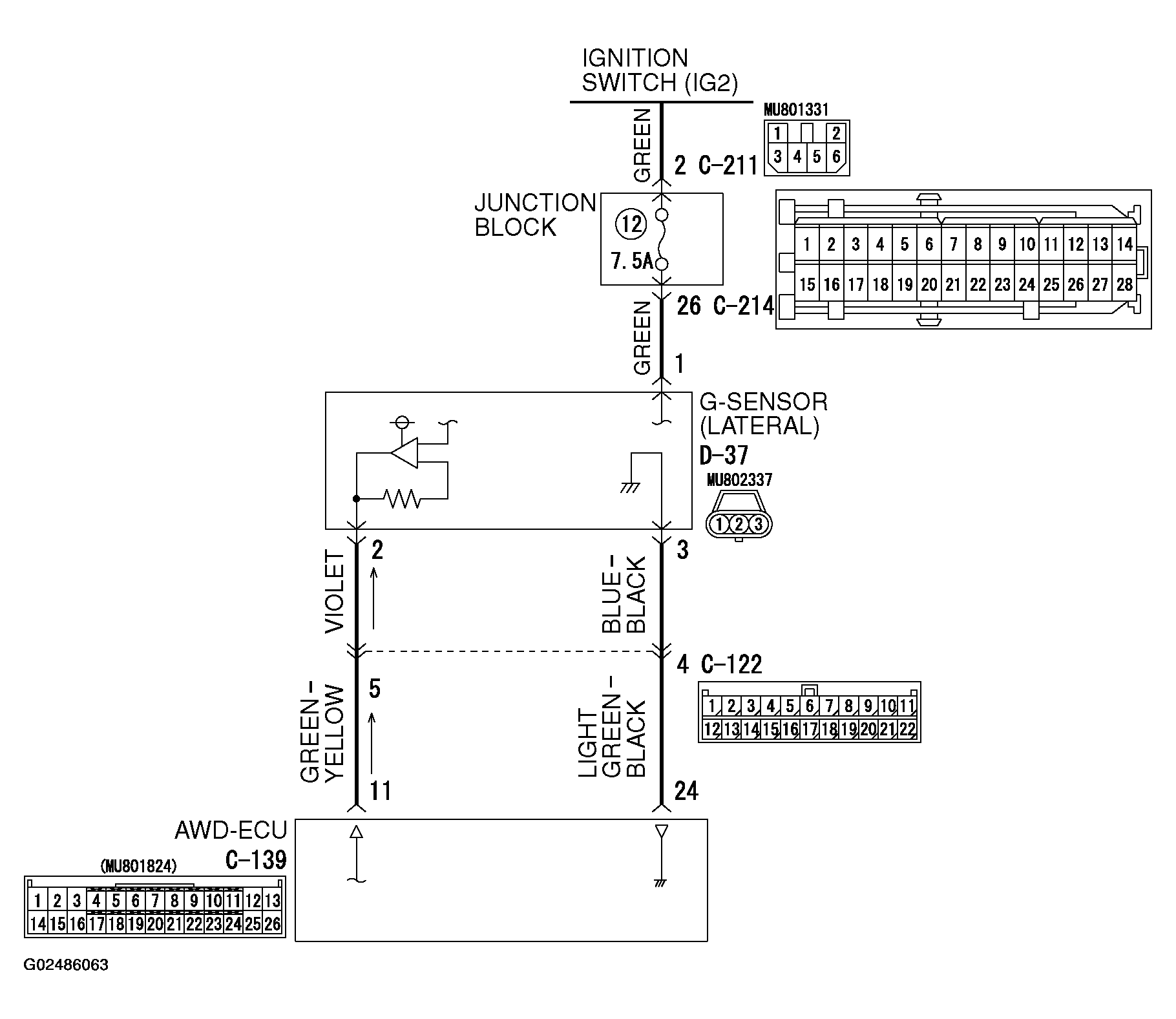

Fig 1: G-Sensor (Lateral) System Circuit (Vehicles Without ABS) - Wiring Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

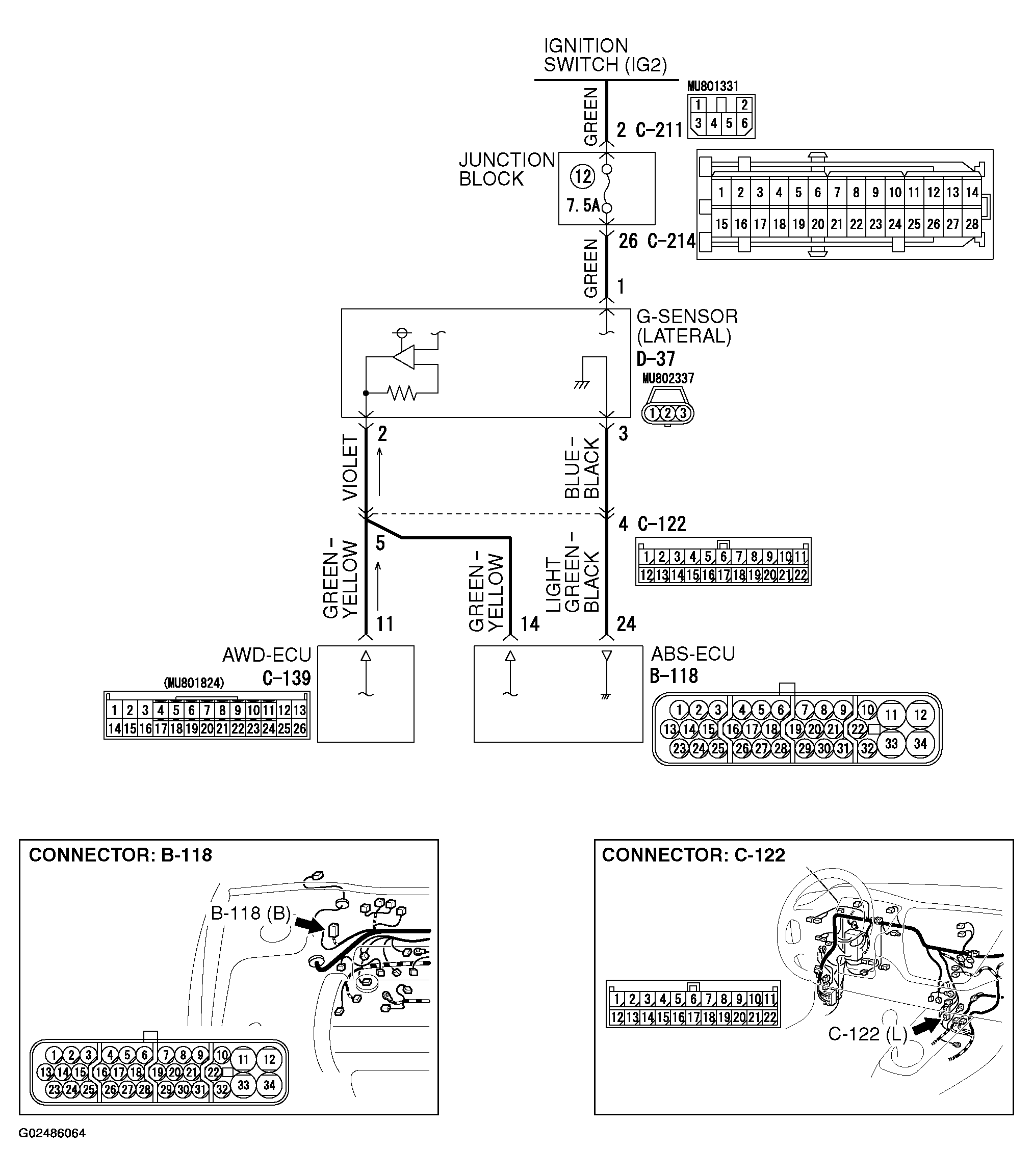

Fig 2: G-Sensor (Lateral) System Circuit (Vehicles With ABS) - Wiring Diagram (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

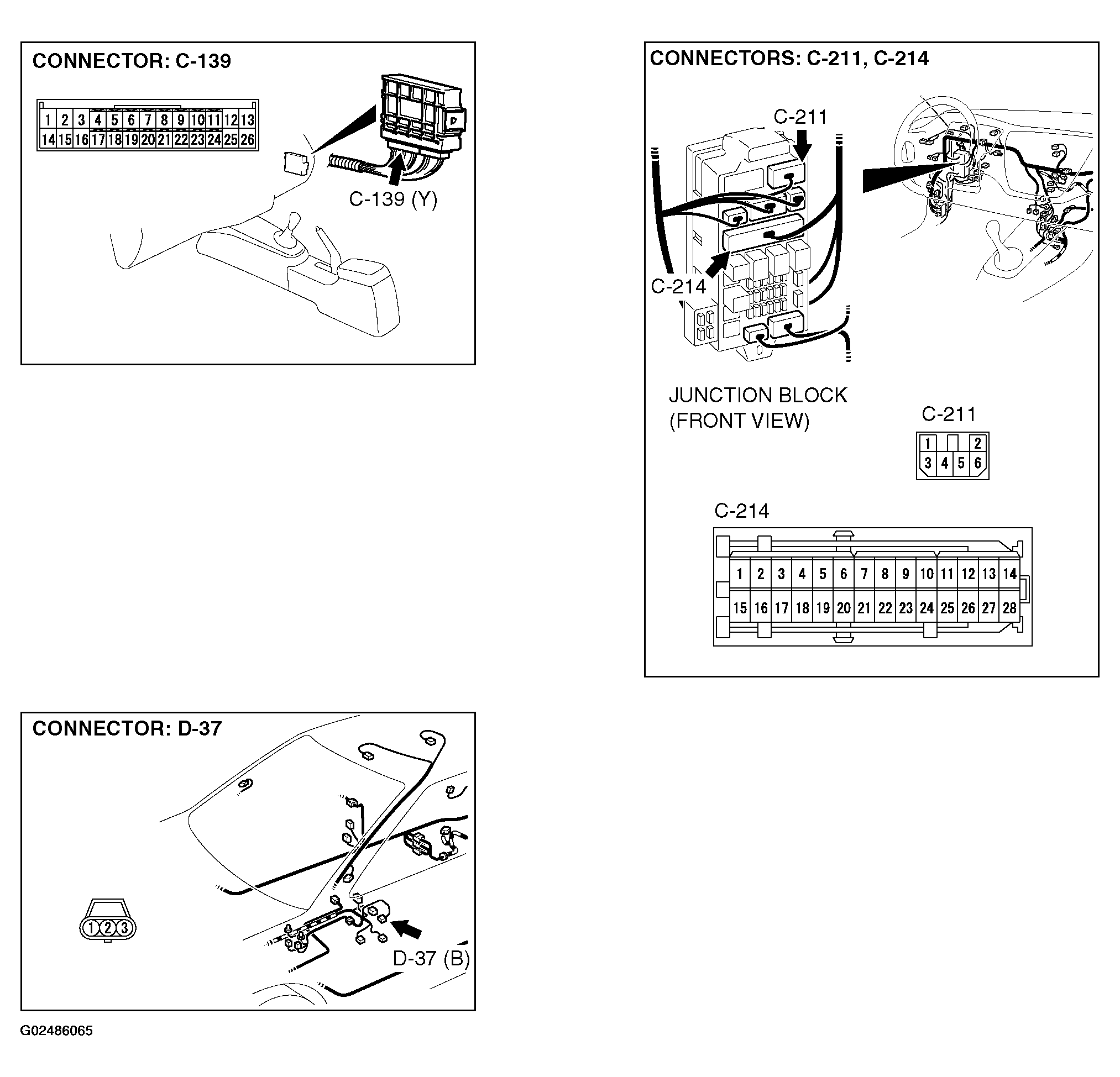

Fig 3: G-Sensor (Lateral) System Circuit (Vehicles With ABS) - Wiring Diagram (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
