ACD Mode Changeover Switch Continuity Check

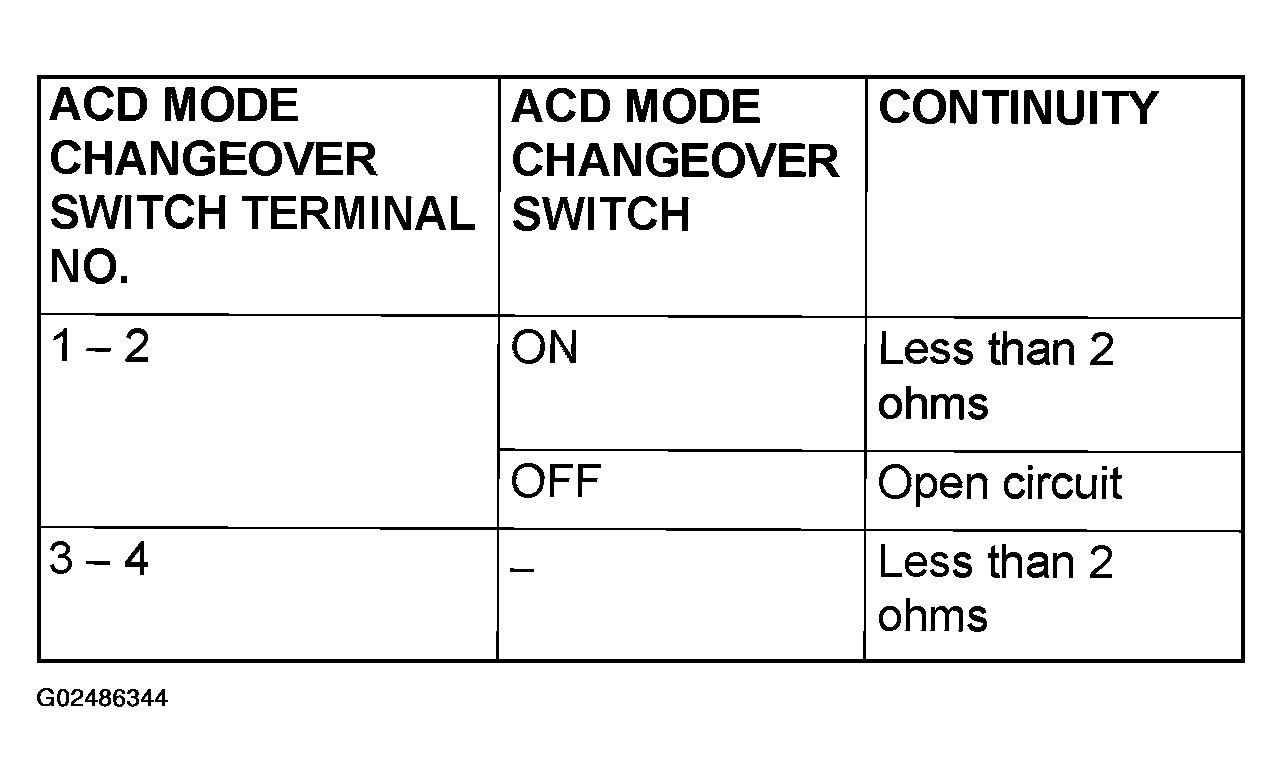

Fig 1: ACD Mode Changeover Switch Continuity Chart
G02486344Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

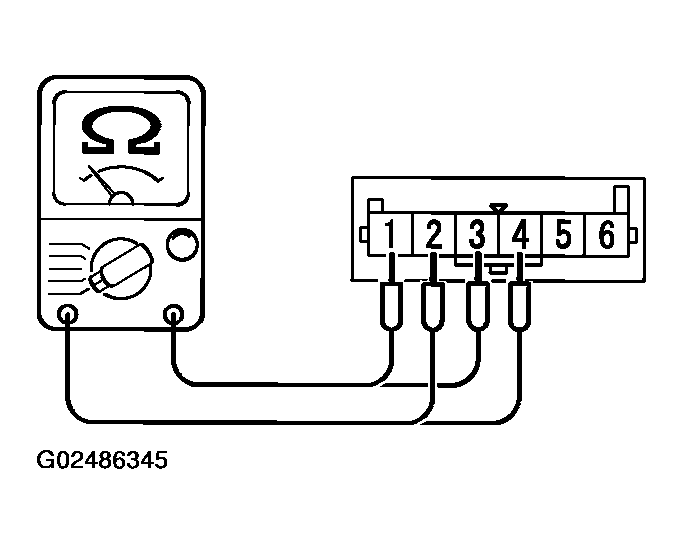

Fig 2: Checking ACD Mode Changeover Switch Continuity
G02486345Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
