Disassembly And Assembly

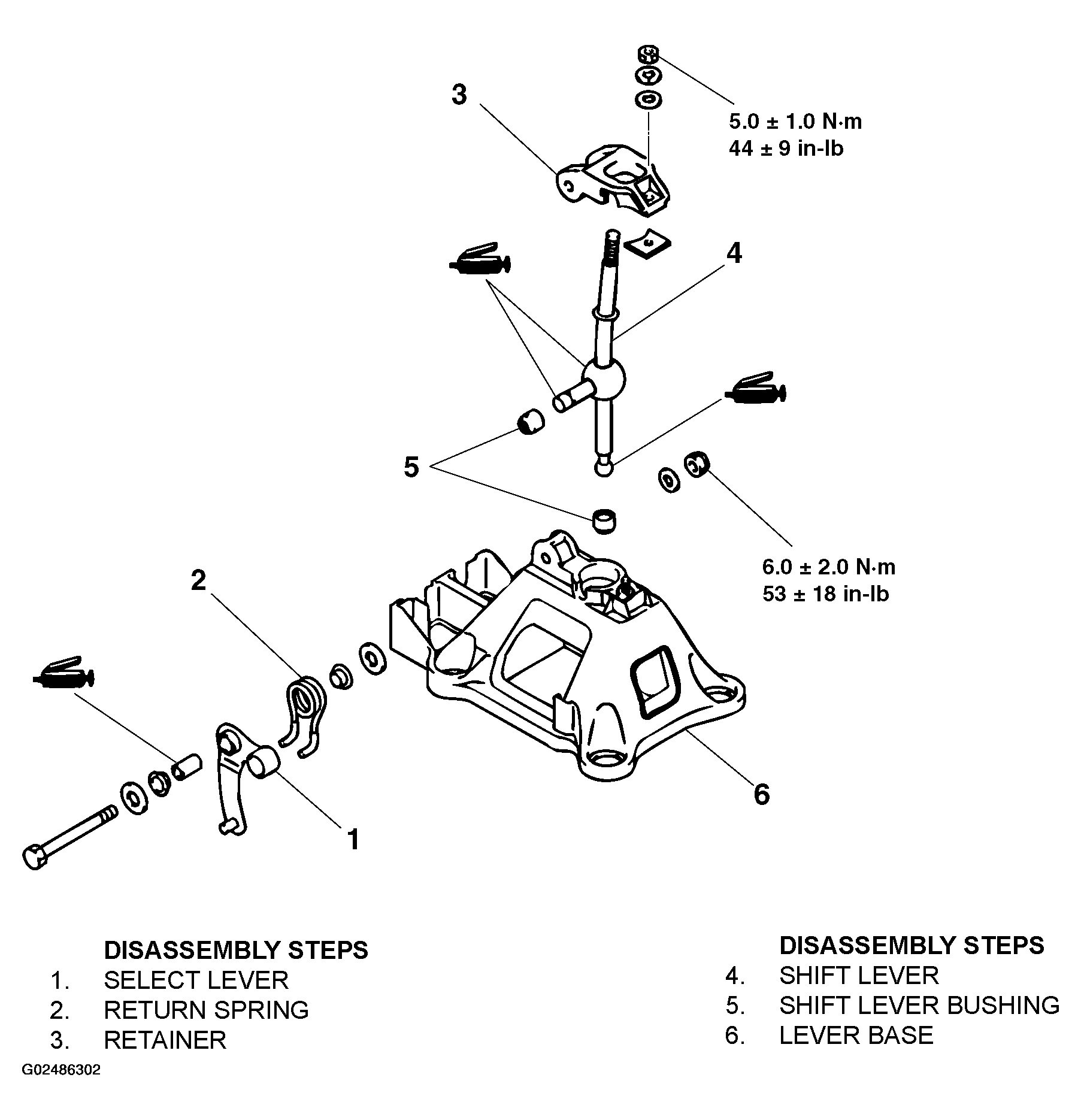

Fig 1: Disassembling/Assembling Shift Lever Assembly (W5M51)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
