>> E << Lock Pin Installation

Drive the lock pin in the direction shown in the illustration.

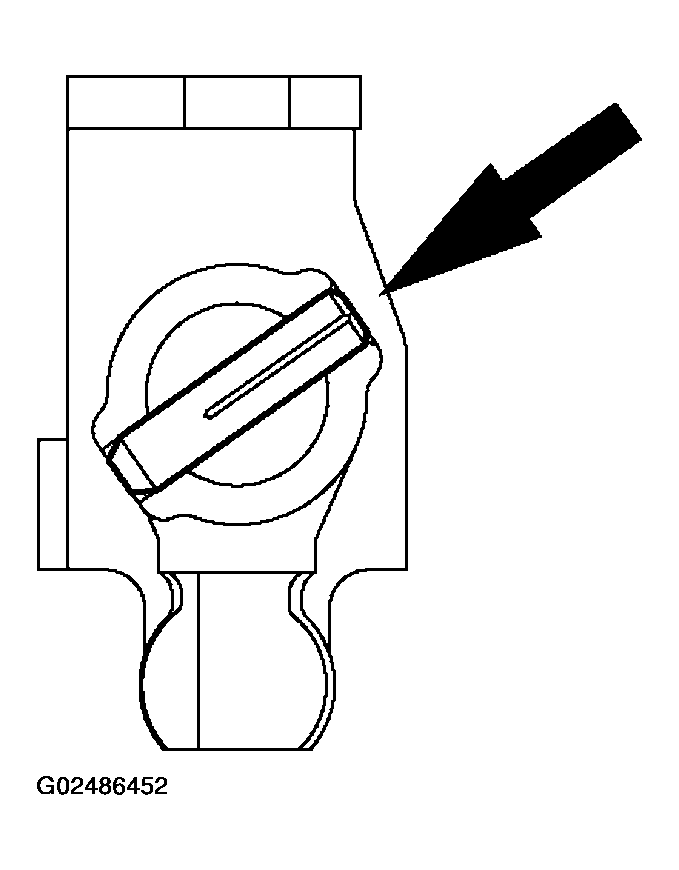

Fig 1: Installing Lock Pin
G02486452Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
