>> J << Thrust Plate Stopper Installation

Install the thrust plate stopper by pressing special tools MD998812, MD998813 and MD998825 by hand. Make sure that it is not tilted.

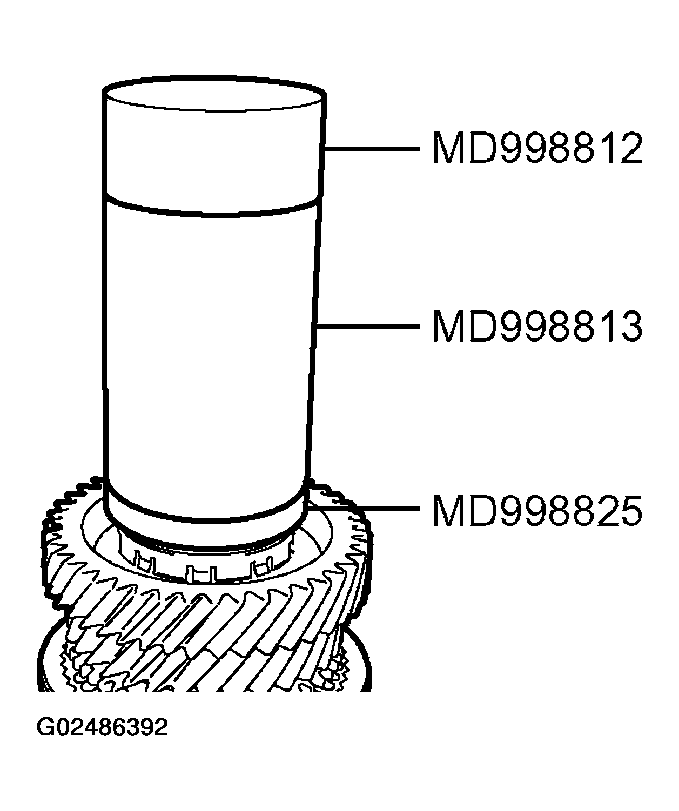

Fig 1: Installing Thrust Plate Stopper
G02486392Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
