Actuator Test Specifications

Fig 1: Actuator Test Specifications Chart
G02403447Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

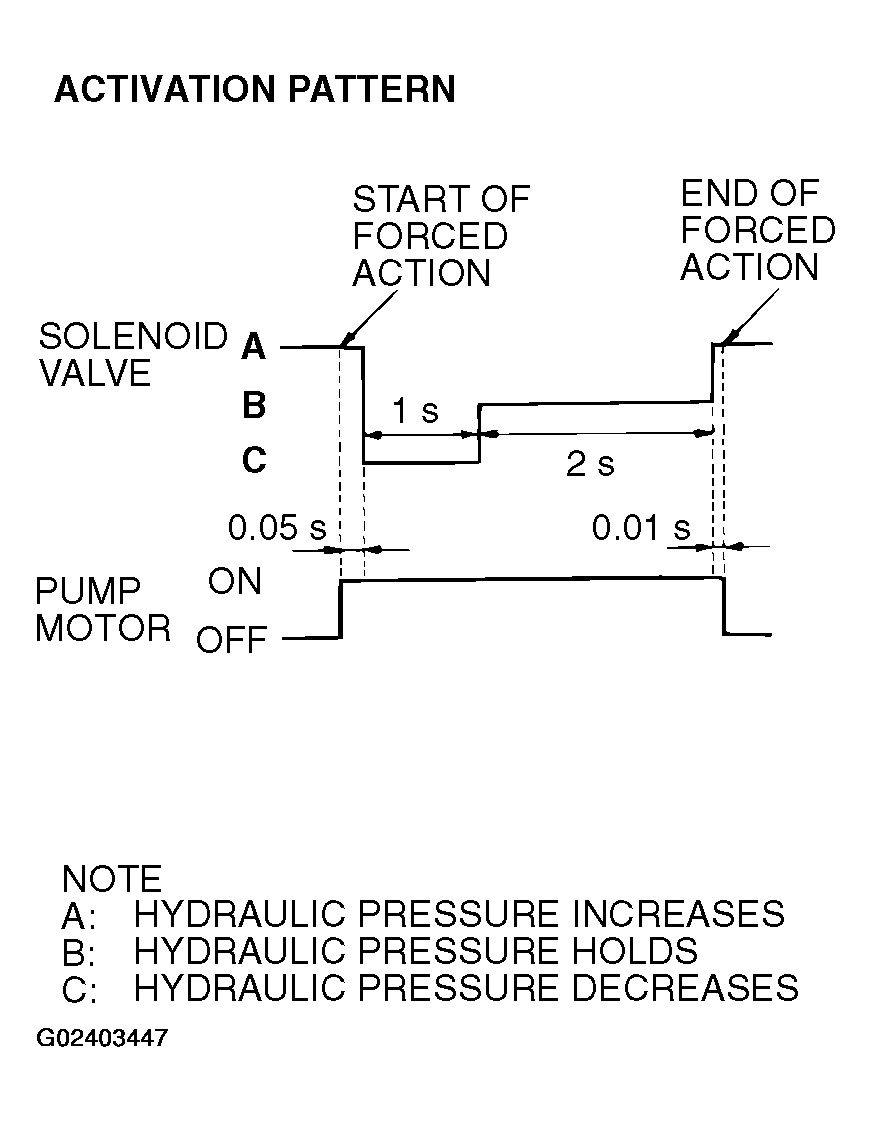

Fig 2: Activation Pattern
G02403448Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
