>> C << TJ Case Installation

CAUTION: The drive shaft joint use special grease. Do not mix old and new or different types of grease.

After applying the specified grease to the TJ case, insert the drive shaft and apply grease one more time.

NOTE: The grease in the repair kit should be divided in half for use, respectively, at the joint and inside the boot.

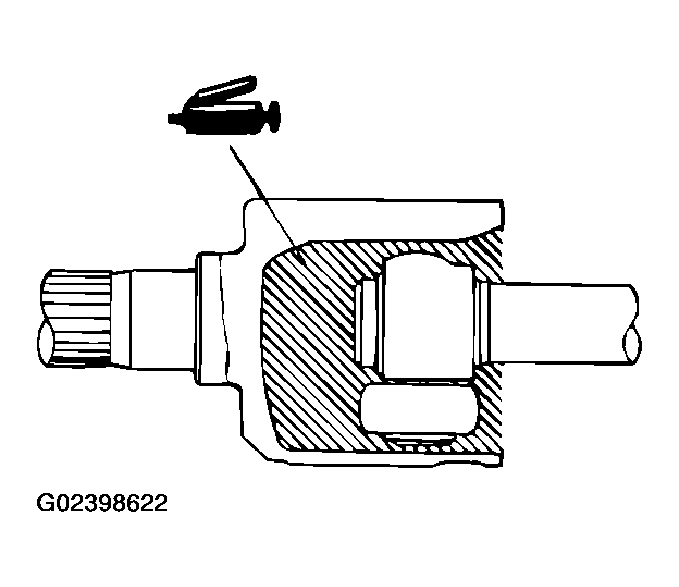

Fig 1: Inserting Drive Shaft And Apply Grease

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
