Column Switch

Fig 1: Identifying Column Switch Connector Terminals
G02400410Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

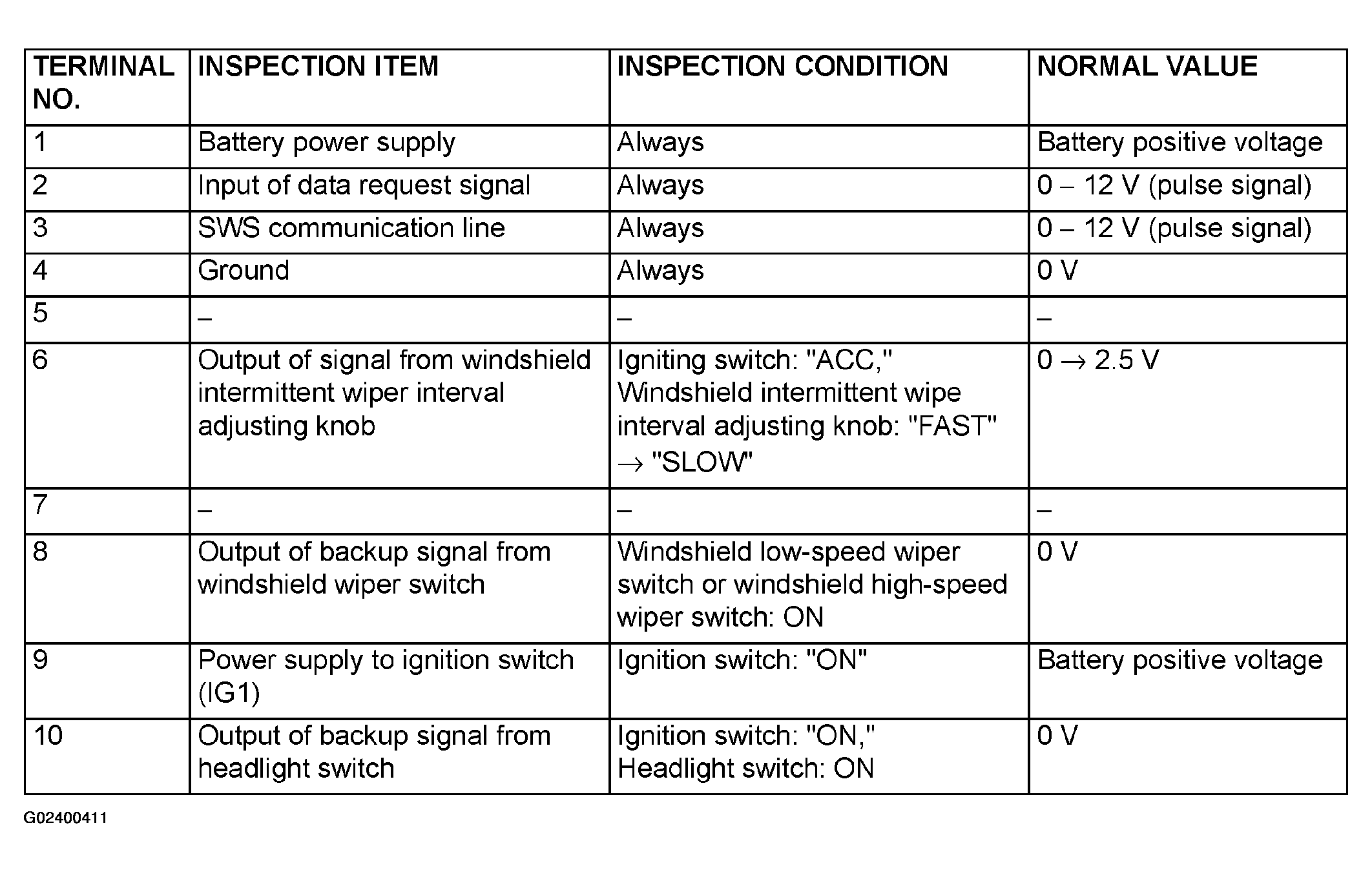

Fig 2: Column Switch Connector Terminals Reference Chart
G02400411Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
