Inspection (Disassembly And Assembly): Brush

  1. Measure the length of the protrusion of the brush. Replace the brush if the protrusion length is shorter than the limit.
    • Limit: 2 mm minimum
  2. Unsolder the lead of the brush. The brush will come out, ready for removal.

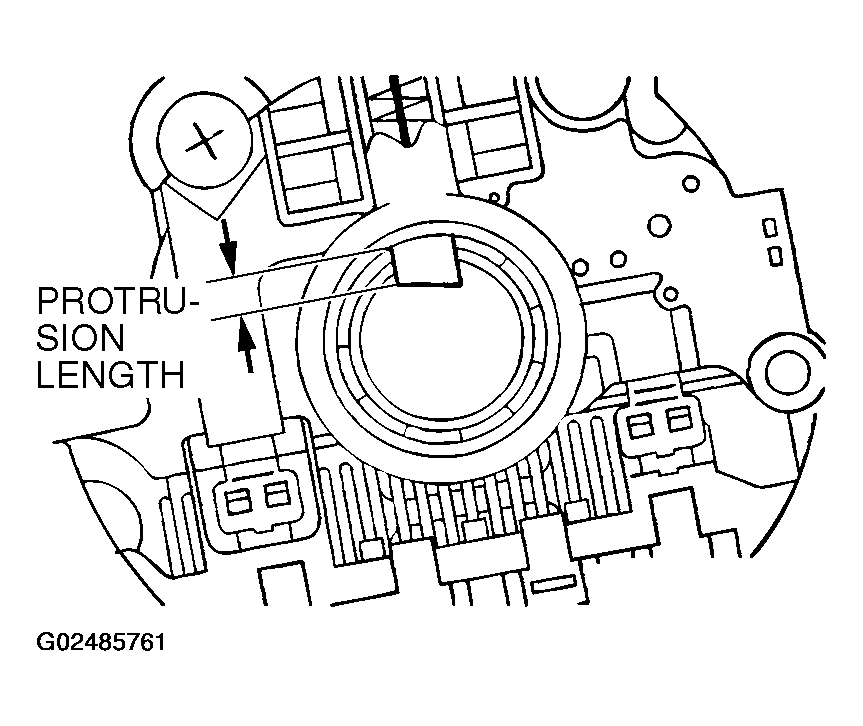

    Fig 1: Measuring Length Of Protrusion Of Brush
    G02485761Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Install a new brush by pushing it into the holder as shown in the drawing and soldering the lead.

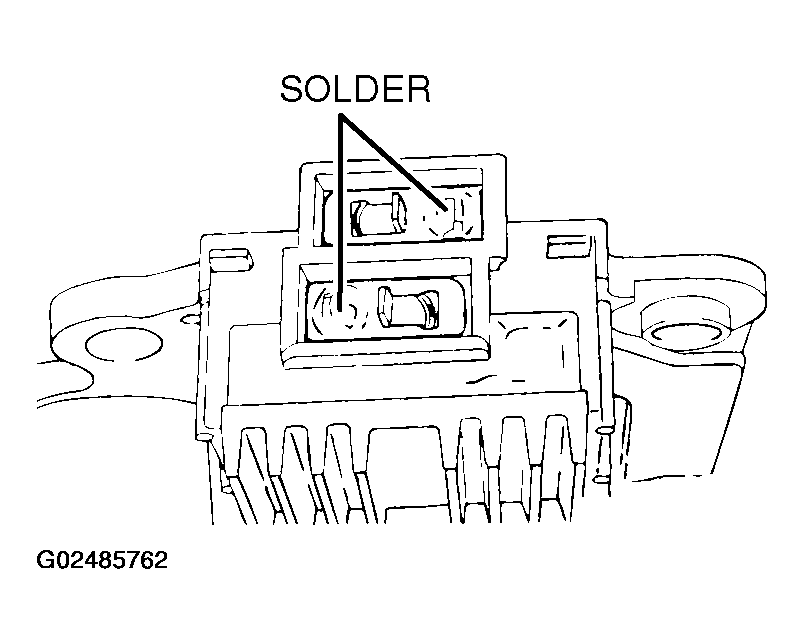

    Fig 2: Installing Brush By Pushing It Into Holder
    G02485762Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
