Removal And Installation: Notes

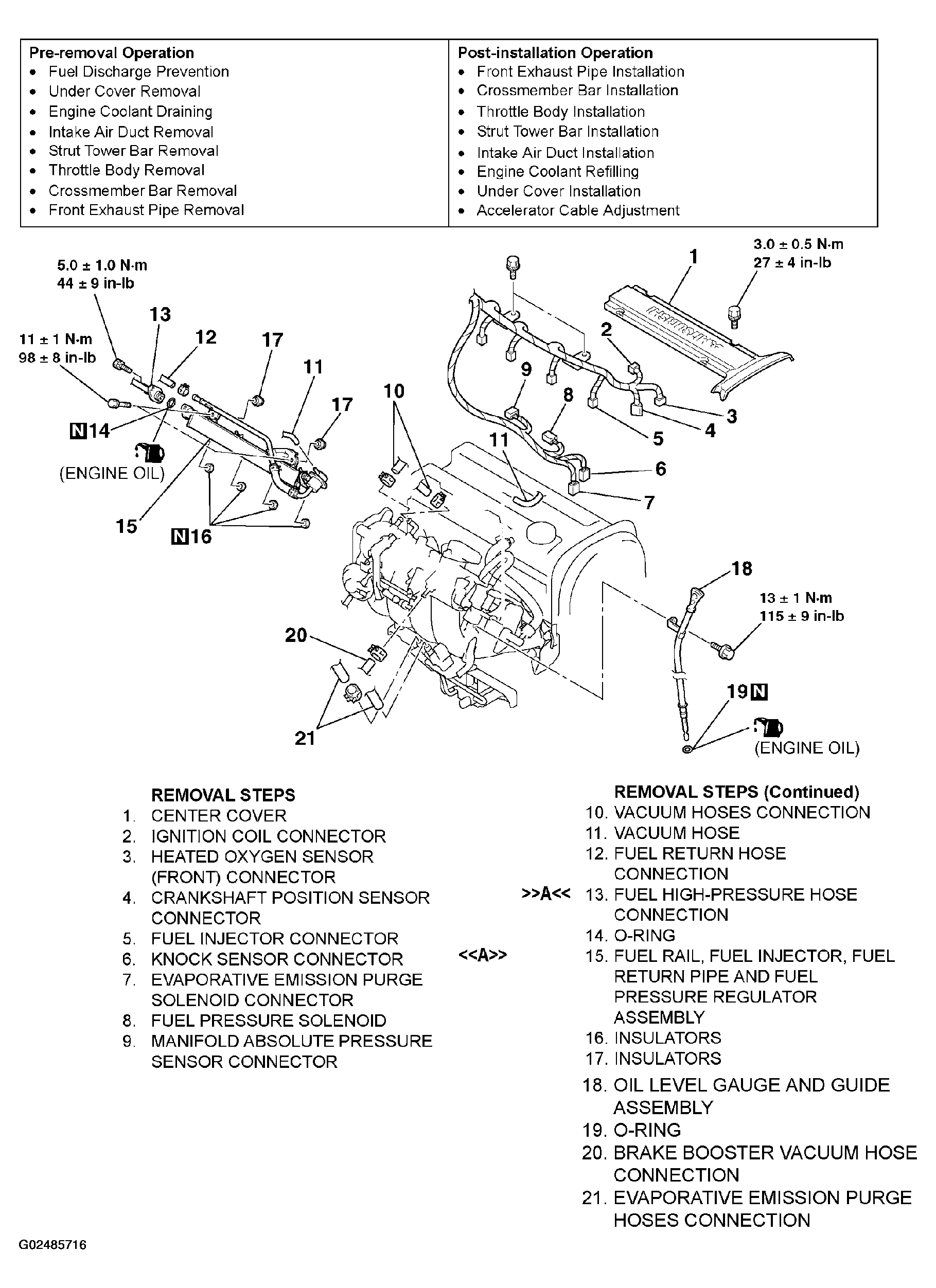

Fig 1: Removing And Installing Intake Manifold Assembly
G02485716Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

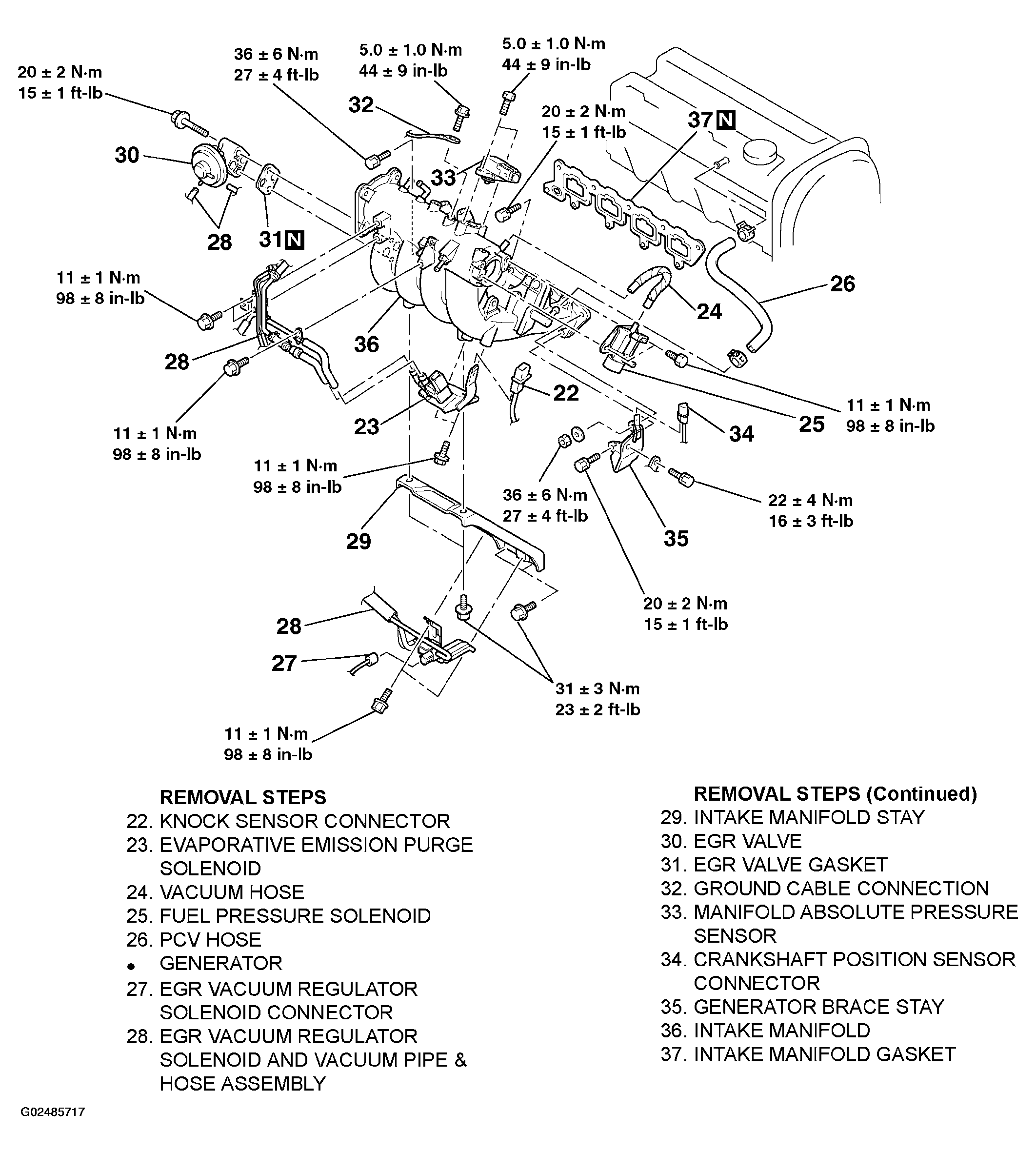

Fig 2: Removing Intake Manifold
G02485717Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
