Fuel -- Technical Information -- Evolution
>>
General Description
>>
Control System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Control System Diagram

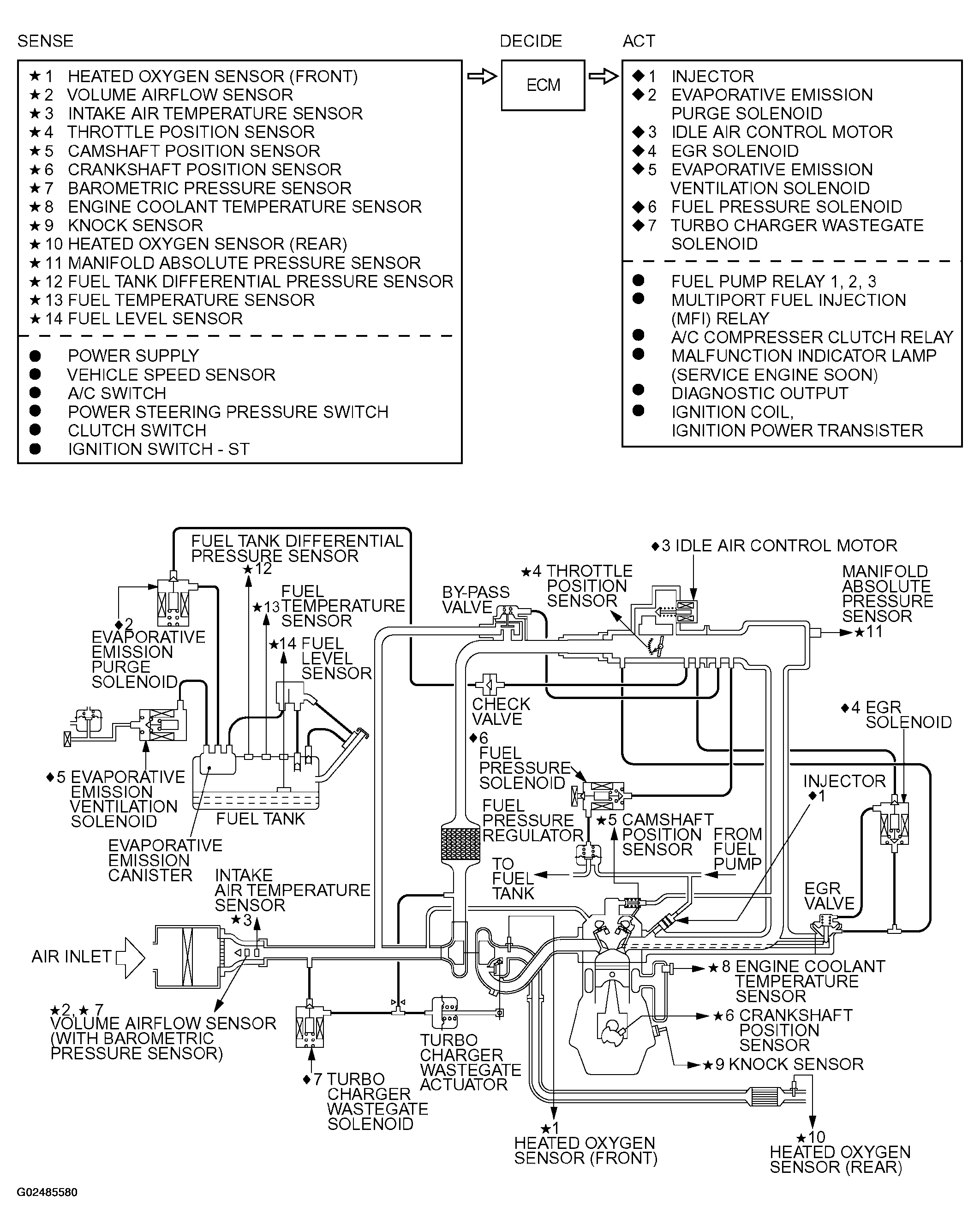

Fig 1: Control System Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
