Fuel -- Technical Information -- Evolution
>>
General Description
>>
System Block Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Block Diagram

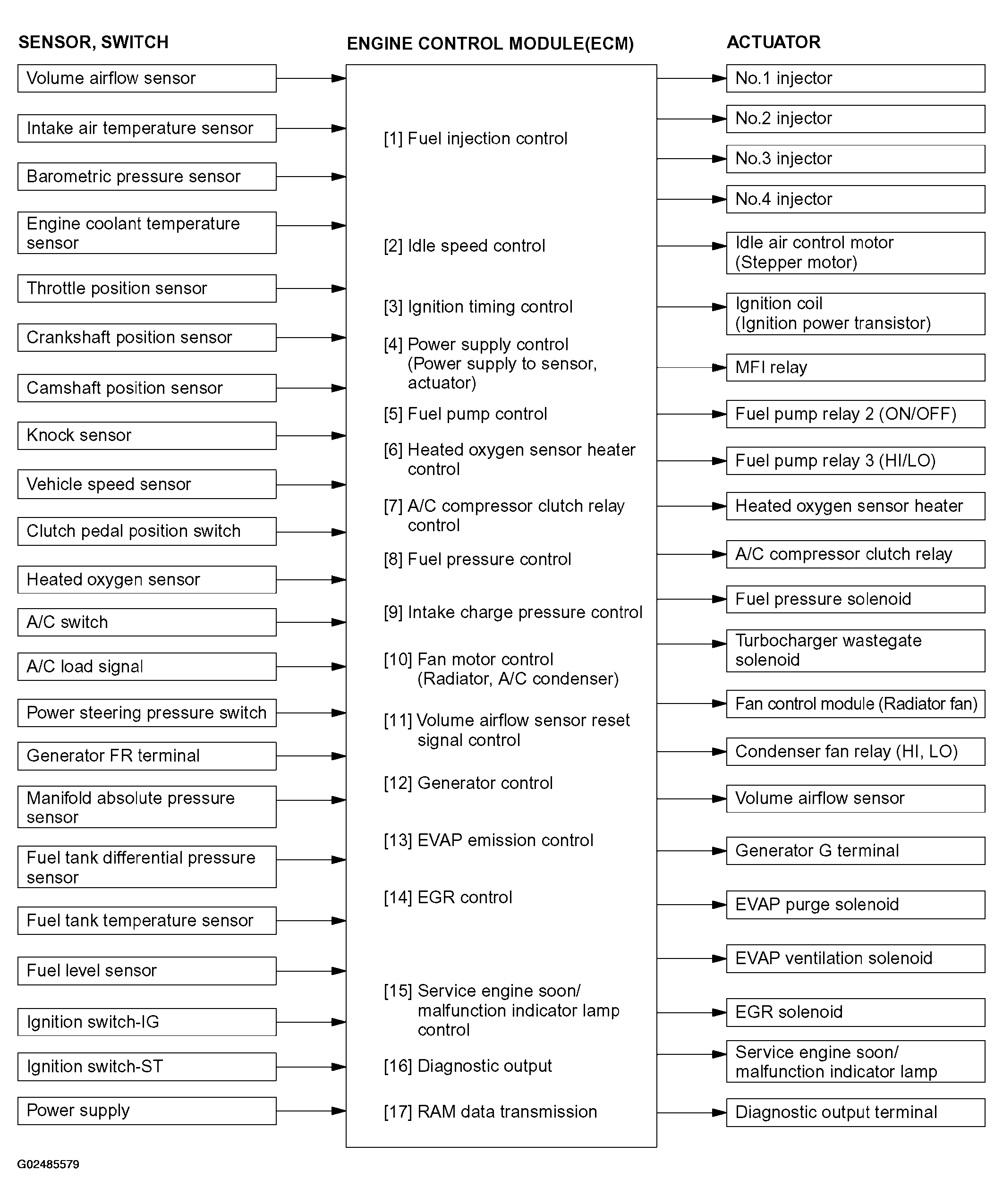

Fig 1: System Block Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
