< Fuel Pipe And Gauge Assembly>

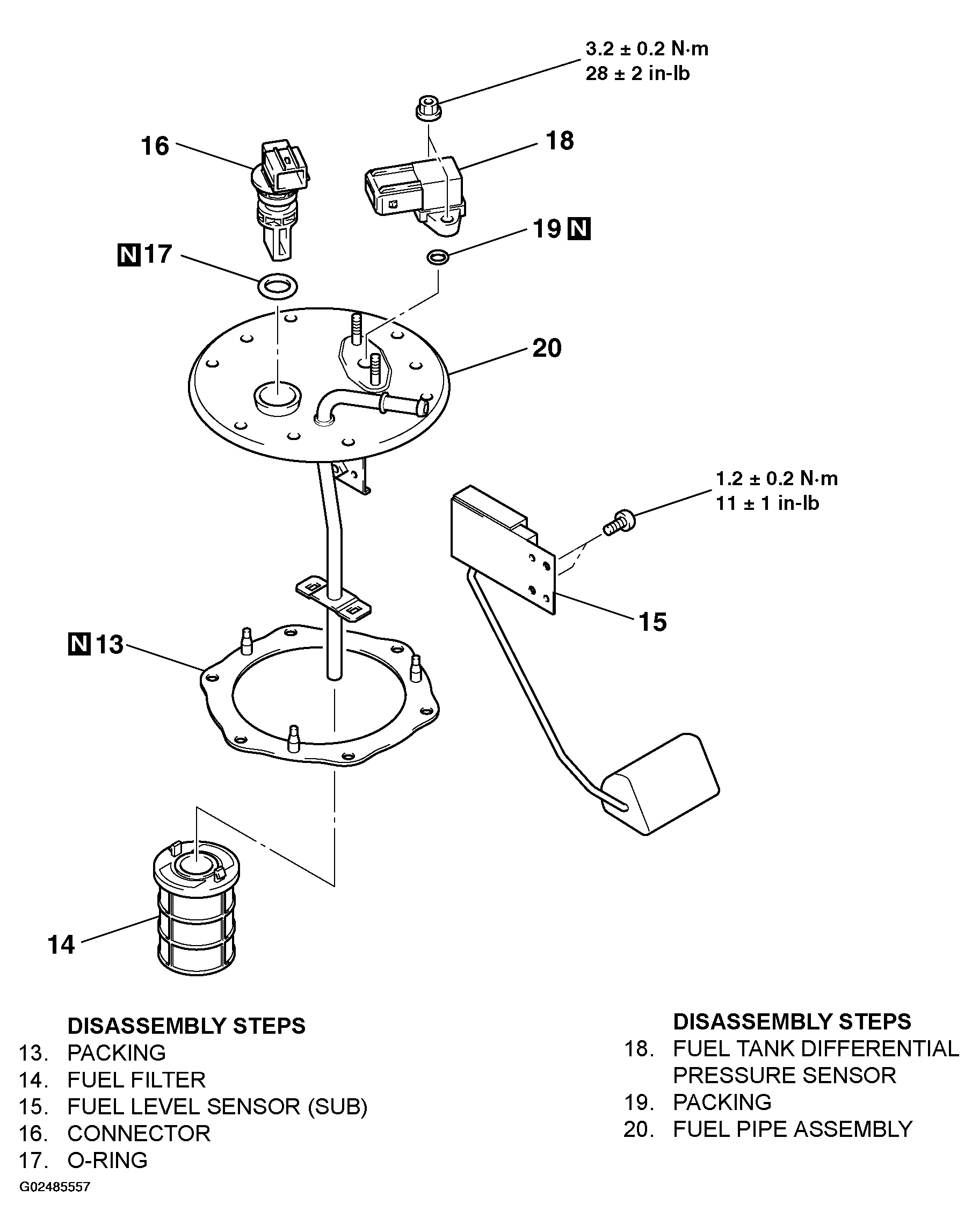

Fig 1: Identifying Fuel Pipe And Gauge Assembly Components
G02485557Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
