Removal And Installation

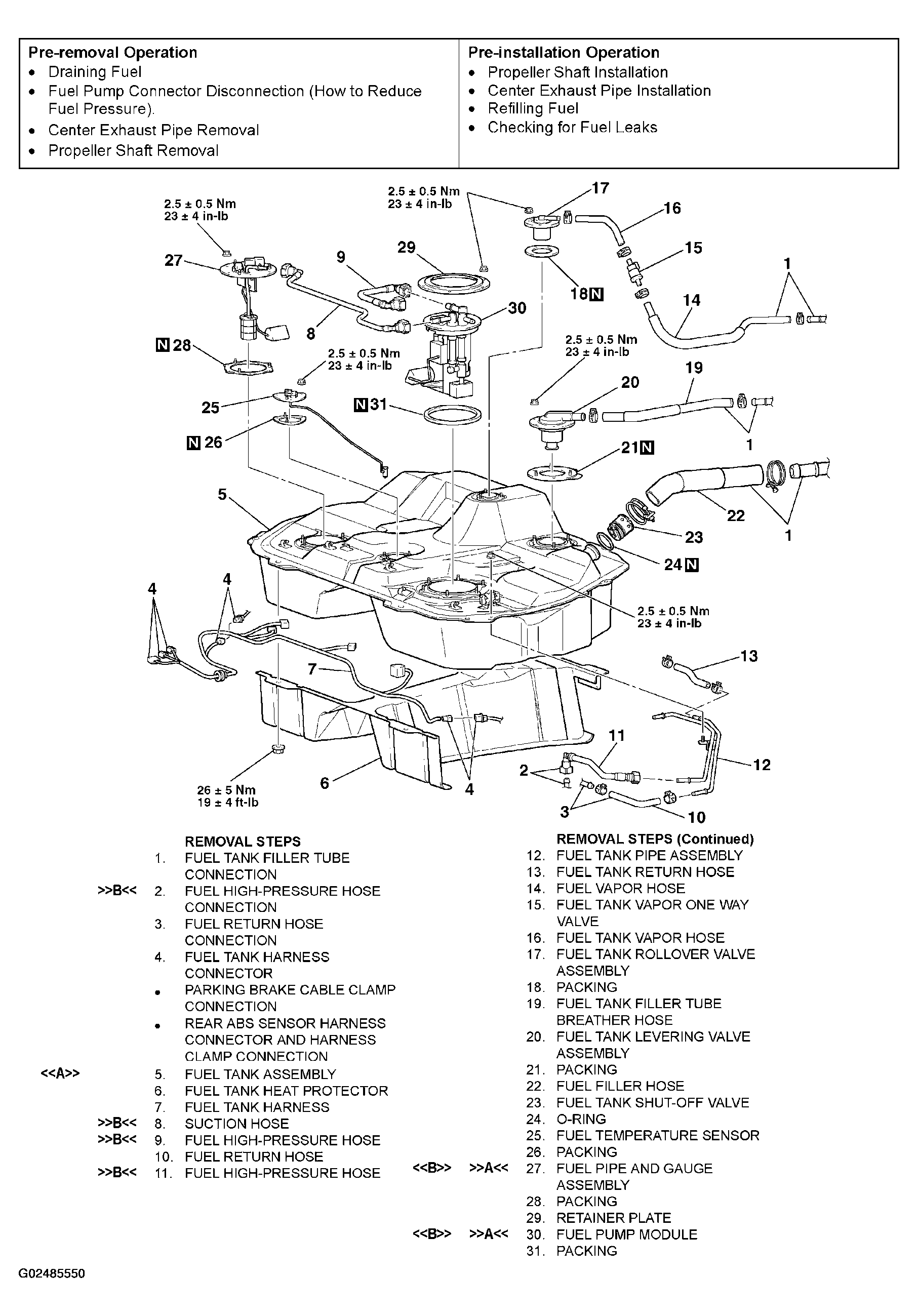

Fig 1: Exploded View Of Fuel Tank Components (1 Of 2)
G02485550Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

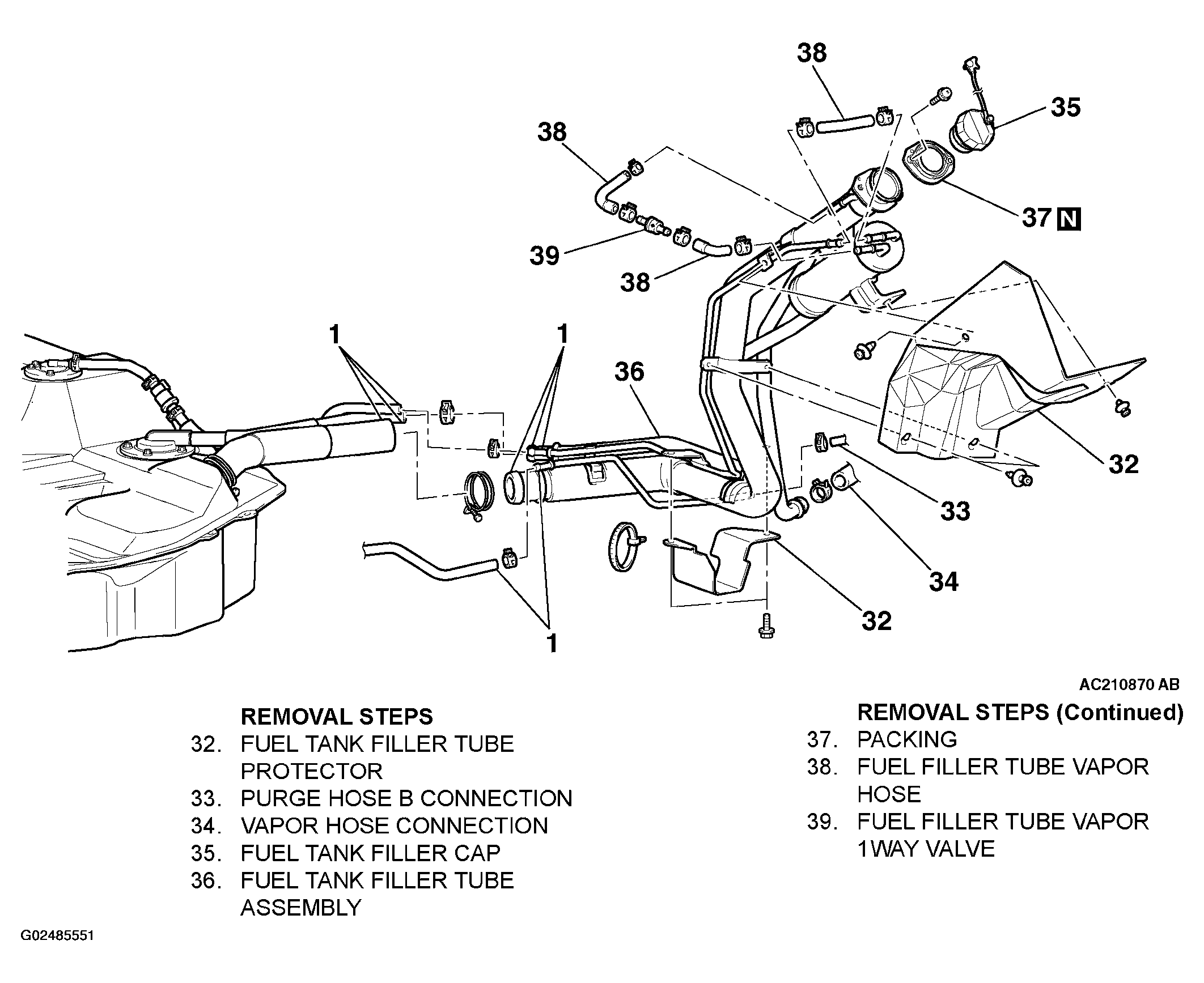

Fig 2: Exploded View Of Fuel Tank Components (2 Of 2)
G02485551Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
