Removal And Installation

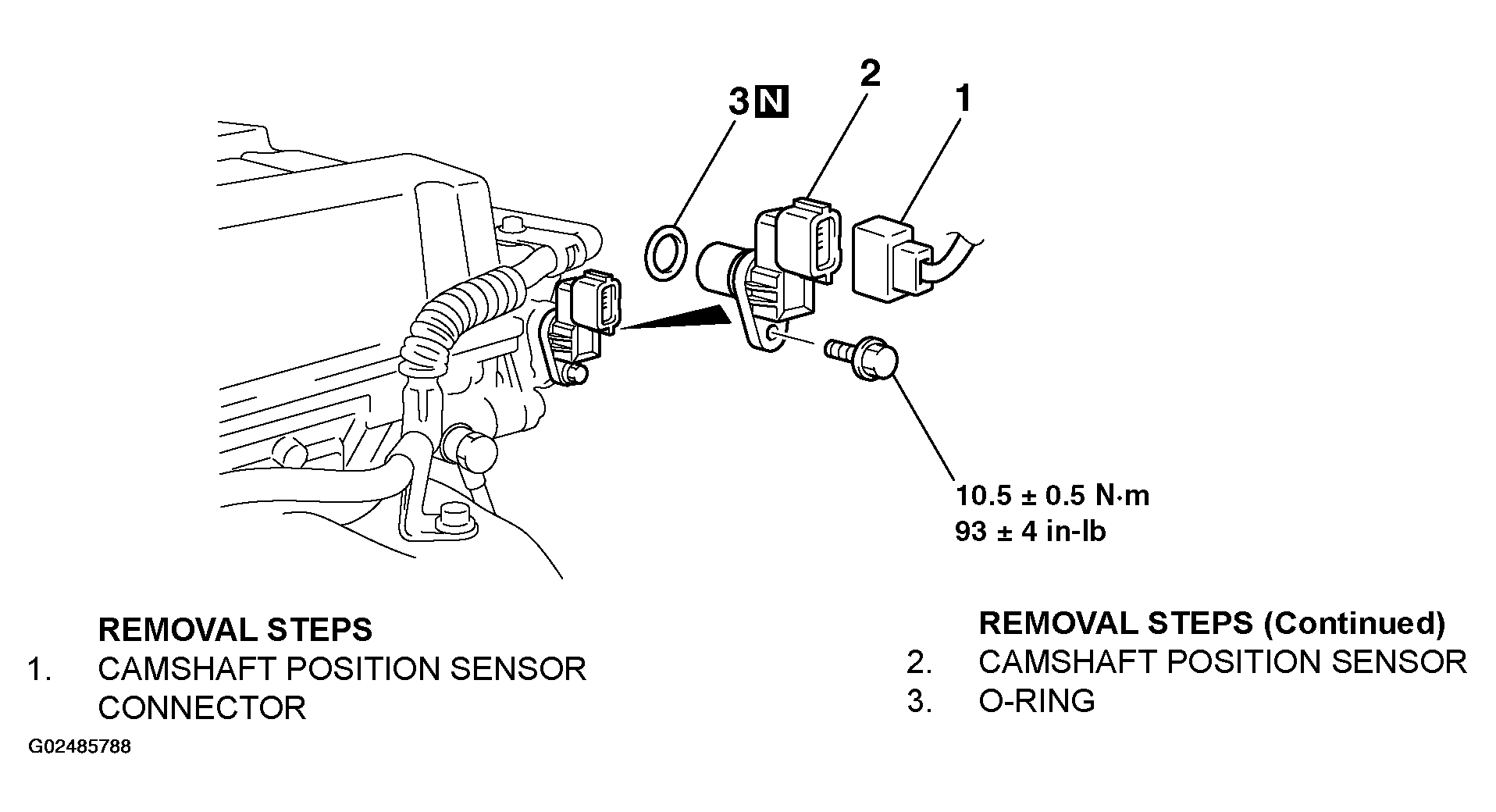

Fig 1: Removing/Installing Camshaft Position Sensor
G02485788Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
