Check Valve Check

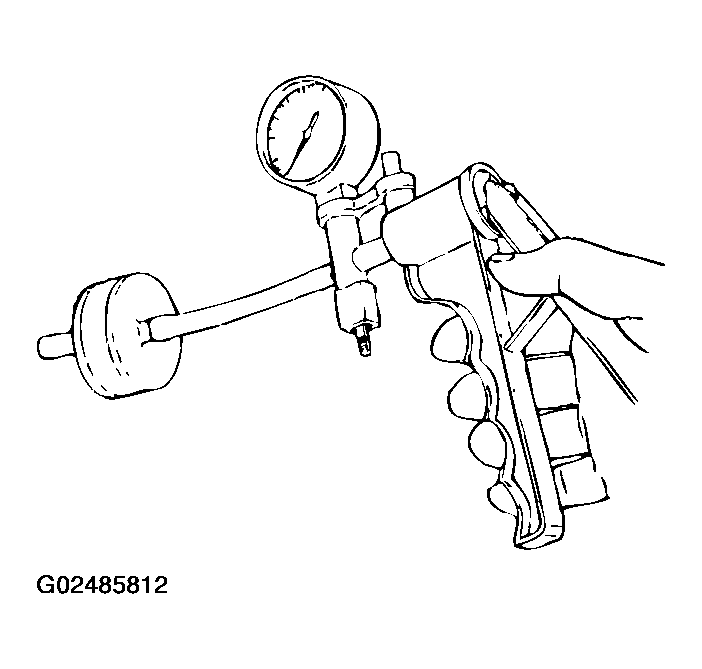

Connect a hand vacuum pump to the check valve, apply negative pressure and check the airtightness.
CONNECTED NIPPLE COLOR NORMAL CONDITION SPECIFICATION
| CONNECTED NIPPLE COLOR |
NORMAL CONDITION |
| Black |
Negative pressure leaks |
| Brown |
Negative pressure is maintained |
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
