Vacuum Circuit Diagram

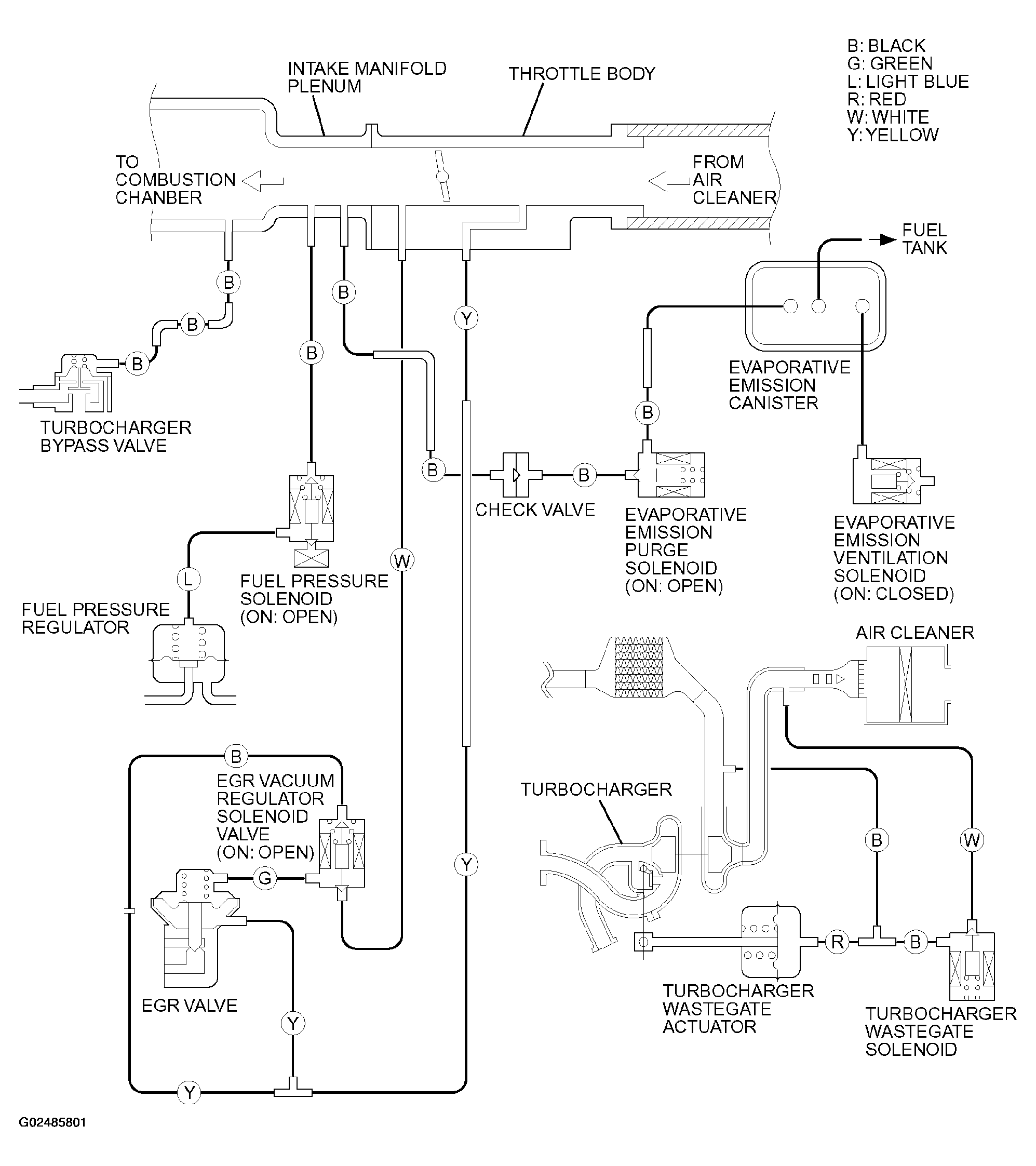

Fig 1: Vacuum Hose - Circuit Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
