Removal And Installation < Vehicles For CALIFORNIA >: Notes

WARNING: This page is about a different variant/trim than selected.

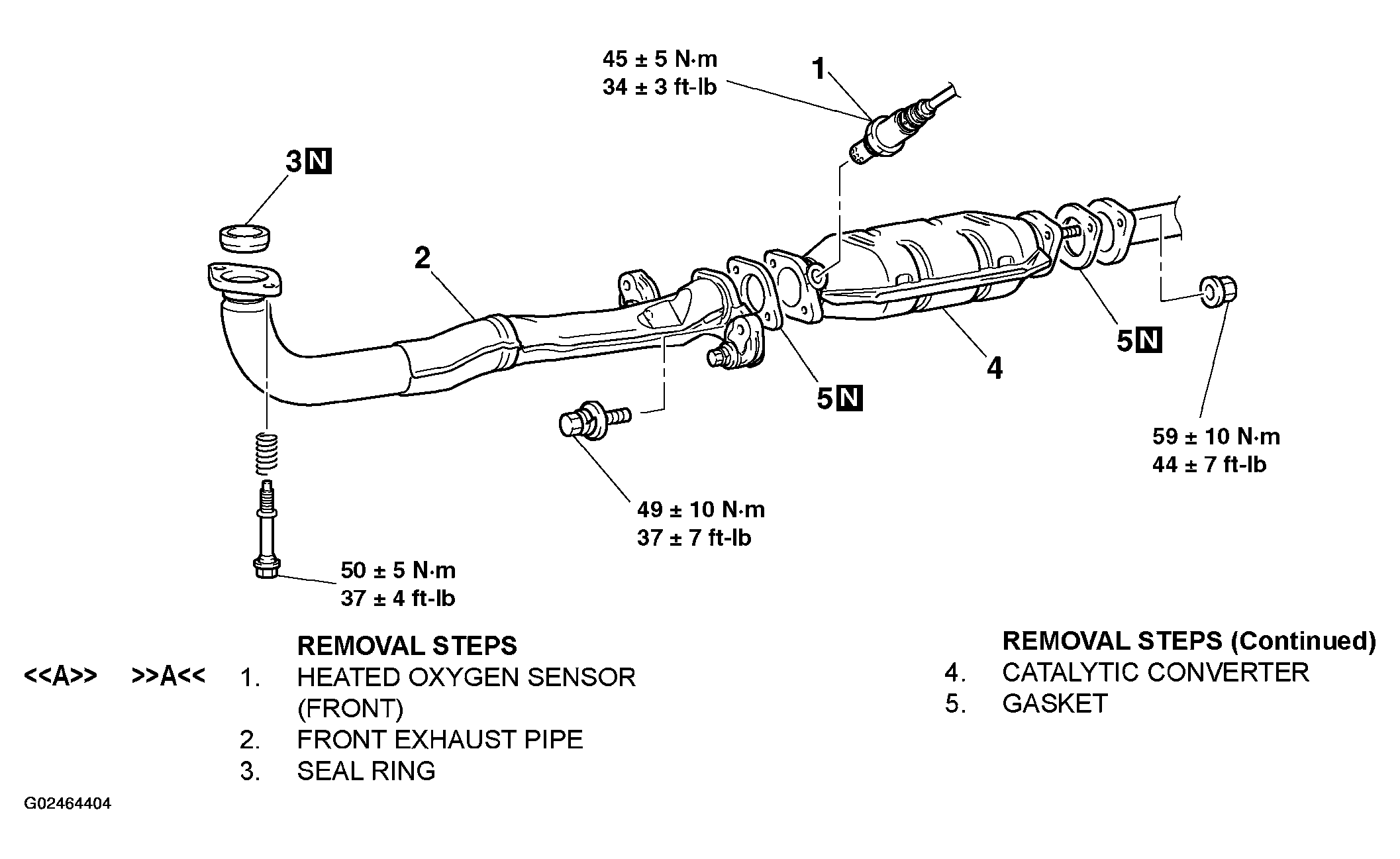

Fig 1: Removing Catalytic Converter And Components
G02464404Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
