Fluid Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Raise and support the front wheels.
  2. Disconnect the return hose connection.
  3. Connect a vinyl hose to the return hose, and drain the fluid into a container.
    CAUTION: Be careful not to position the high-tension cable near the fuel rail.
  4. Disconnect the high-tension cable.
  5. While operating the starter motor intermittently, turn the steering wheel all the way to the left and right several times to drain all of the fluid.
  6. Connect the return hose securely, and then secure with the clip.
  7. Fill the oil reservoir with GENUINE MITSUBISHI POWER STEERING FLUID up to the lower position of the filler, and then bleed the air.

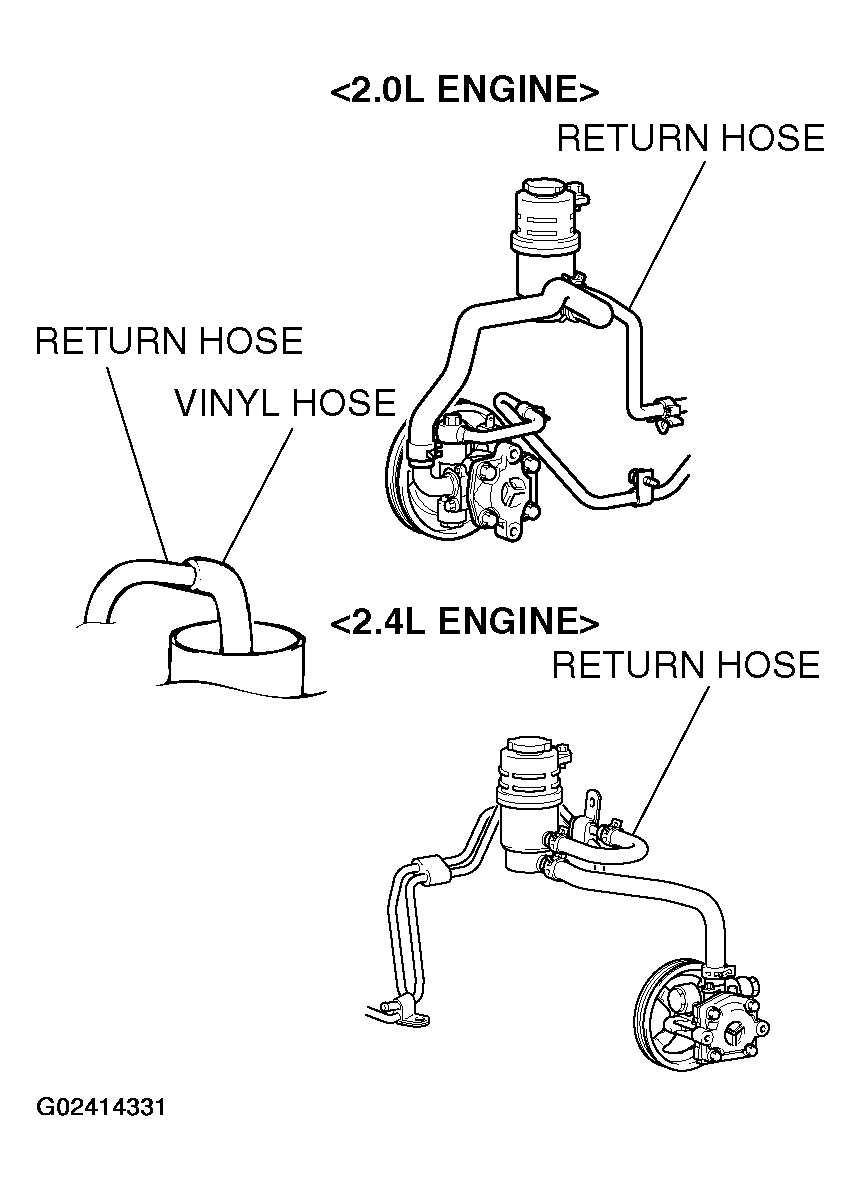

    Fig 1: Connecting Vinyl Hose To Return Hose And Drain Fluid Into Container
    G02414331Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
