Steering Angle Check

WARNING: This page is about a different variant/trim than selected.

Place the front wheel on a turning radius gauge and measure the steering angle.
- Standard value:

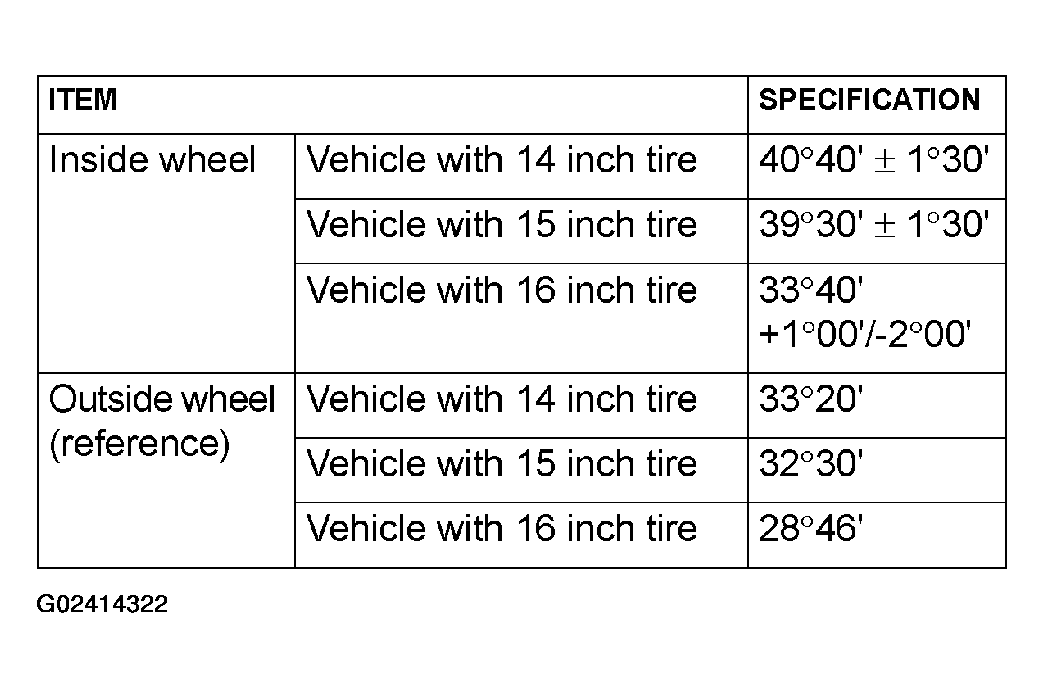

Fig 1: Item Specification Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

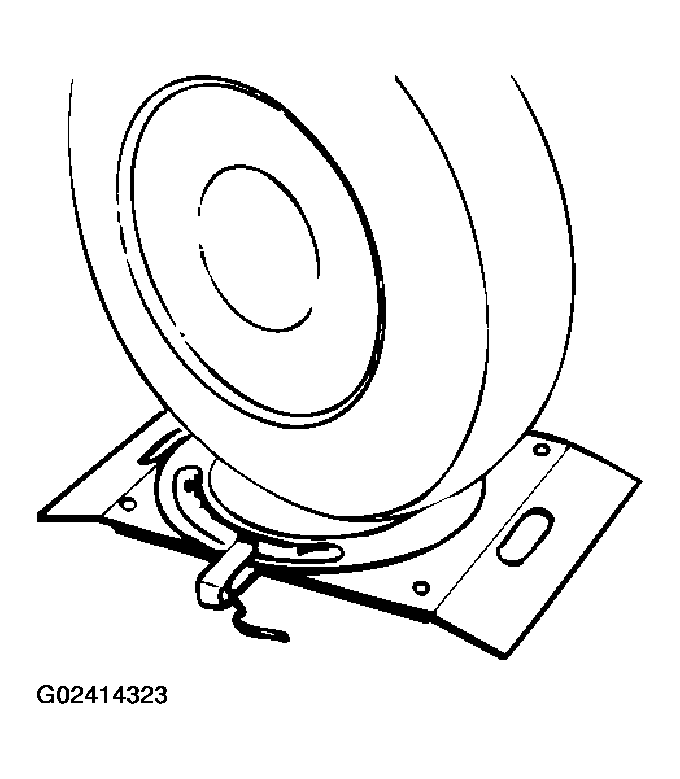

Fig 2: Placing Front Wheel On Turning Radius Gauge
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
If the steering angle is not within the standard value, adjust the toe-in.
- Standard value: 1 +/- 2 mm (0.04 +/- 0.09 inch)
Loosen the jam nut, and unclip the bellows.
Adjust the toe-in by turning the left and right tie rod turnbuckles by the same amount (in opposite directions).
NOTE: The toe will move out as the left turnbuckle is turned toward the front of the vehicle and the right turnbuckle is turned toward the rear of the vehicle.
Tighten the jam nut to the specified torque, and tighten the bellows by the clip.
- Standard torque: 40 +/- 5 N.m (29 +/- 4 ft-lb)

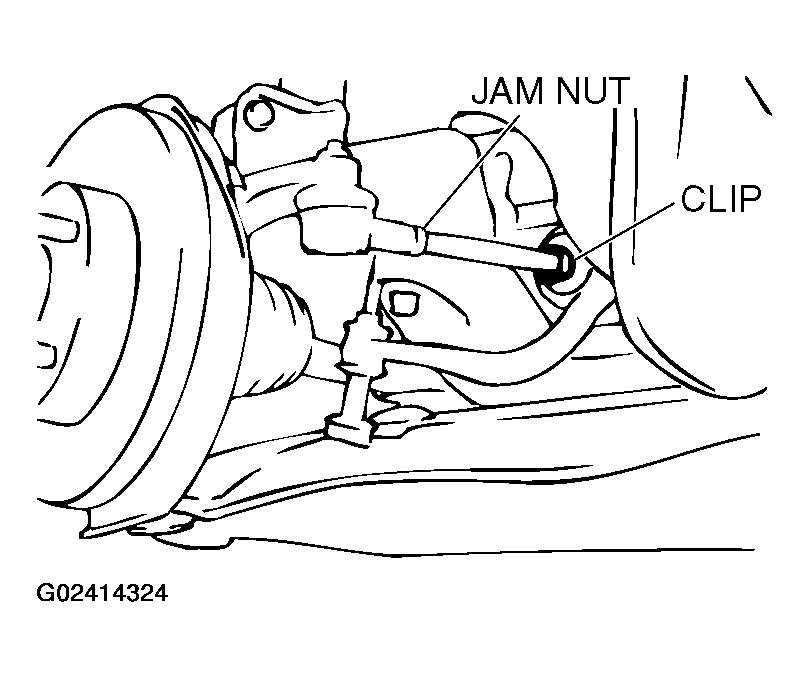

Fig 3: Tightening Bellows By Clip
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
