>> L << Tab Washer/Tie Rod Installation

WARNING: This page is about a different variant/trim than selected.

After installing the tie rod to the rack, fold tab washer end (two locations) to tie rod notch.

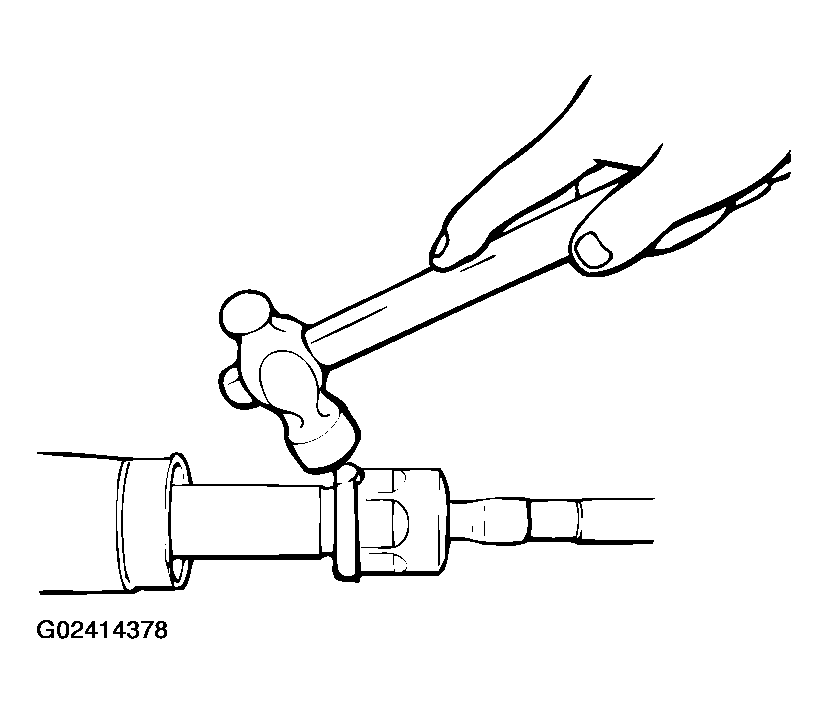

Fig 1: Installing Tie Rod To Rack
G02414378Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
