>> M << Bellows Band Installation
WARNING: This page is about a different variant/trim than selected.
- Turn the adjusting bolt of special tool MB991561 to adjust the opening dimension (W) to the standard value.NOTE: The dimension (W) is adjusted by approximately 0.7 mm (0.03 inch) per one turn.NOTE: Do not turn the adjusting bolt more than one turn.
- Standard value (W): 2.9 mm (0.11 inch)
- < When more than 2.9 mm (0.11 inch)>: Screw in the adjusting bolt.
- < When less than 2.9 mm (0.11 inch)>: Loosen the adjusting bolt.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

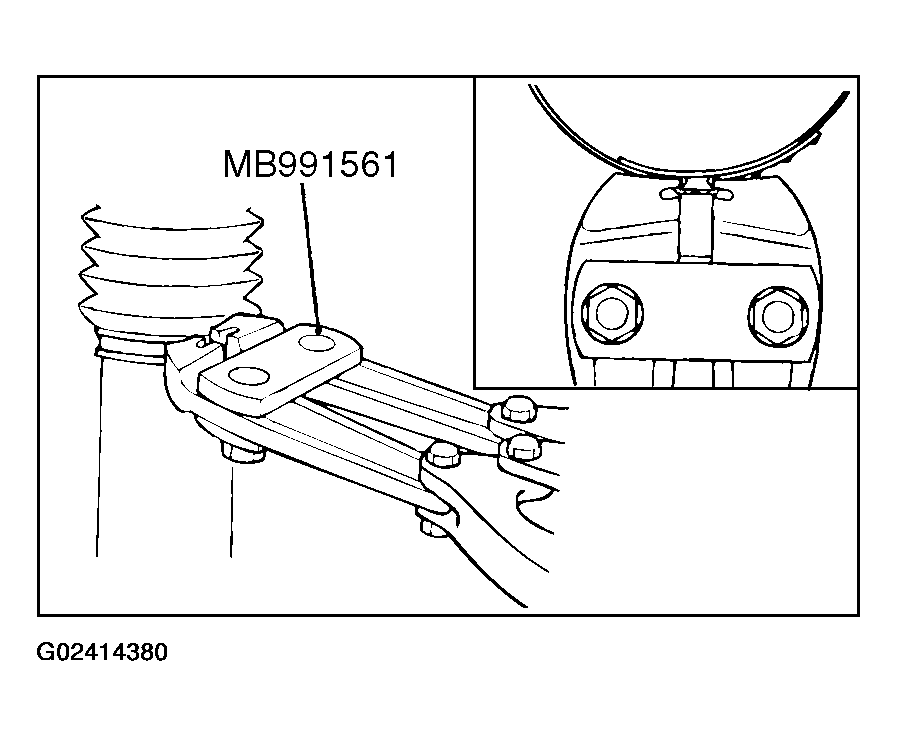

CAUTION:- Hold the rack housing, and use special tool to crimp the bellows band securely.
- Crimp the bellows band until touches the stopper.
- Use special tool MB991561 to crimp the bellows band.

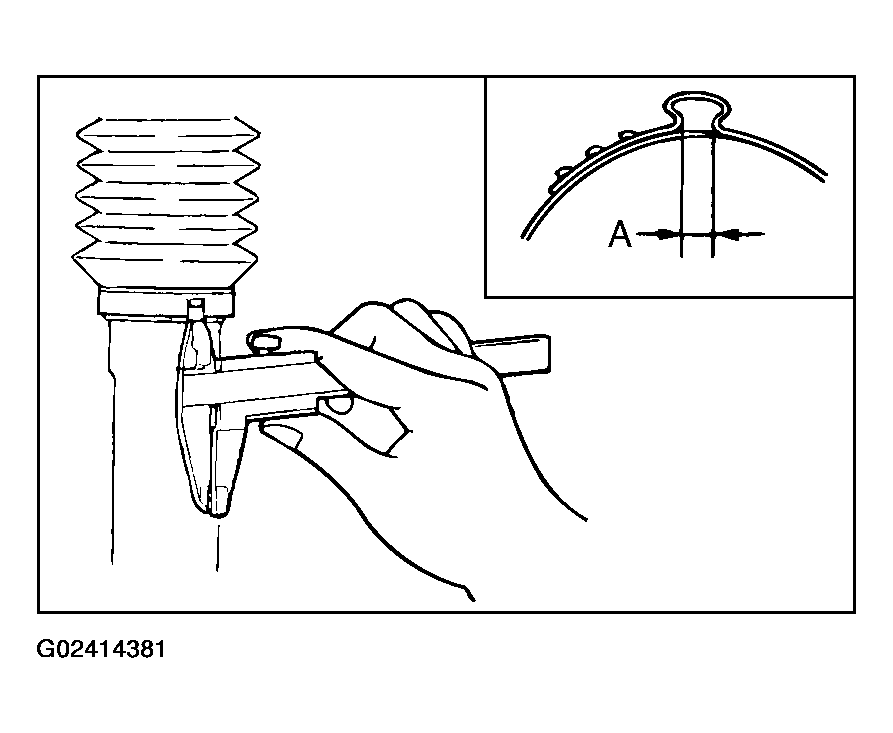

- Check that crimped width (A) is within the standard value.
- Standard value (A): 2.4 - 2.8 mm (0.09 - 0.11 inch) < When more than 2.8 mm (0.11 inch)>: Readjust the dimension (W) of step (1) to the value calculated by the following equation, and repeat step (2.)
- W = 5.5 mm (0.22 inch) - A [Example: if (A) is 2.9 mm (0.11 inch), (W) is 2.6 mm (0.10 inch).]
- < When less than 2.4 mm (0.09 inch)>: Remove the bellows band, readjust the dimension (W) of step (1) to the value calculated by the following equation, and use a new bellows band to repeat steps (2) to (3.)
- W = 5.5 mm (0.22 inch) - A [Example: if (A) is 2.3 mm (0.09 inch), (W) is 3.2 mm (0.13 inch).]
