<< F >> Rack Stopper/Rack Bushing/Oil Seal/O-Ring/Rack Assembly Removal

WARNING: This page is about a different variant/trim than selected.
  1. Pull out the rack slowly. Take out the rack stopper and the rack bushing at the same time.

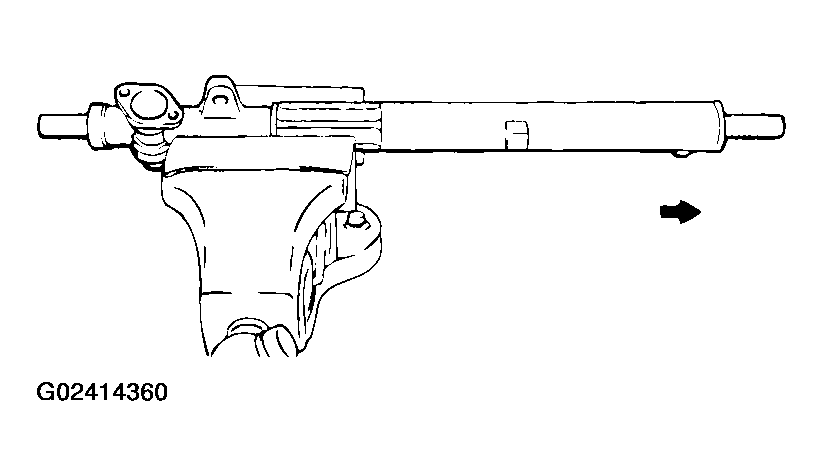

    Fig 1: Pulling Out Rack
    G02414360Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION: Do not damage the oil seal press fitting surface.
  2. Partially bend the oil seal and remove it from the rack bushing.

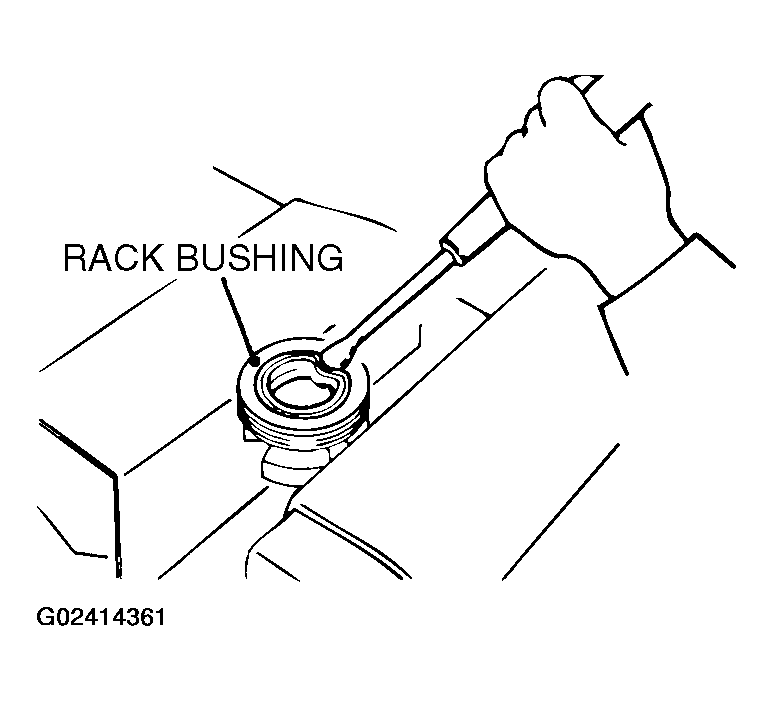

    Fig 2: Removing Oil Seal From Rack Bushing
    G02414361Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
