Tie Rod Swing Resistance Check: Notes
WARNING: This page is about a different variant/trim than selected.
- Give 10 hard swings to the tie rod.

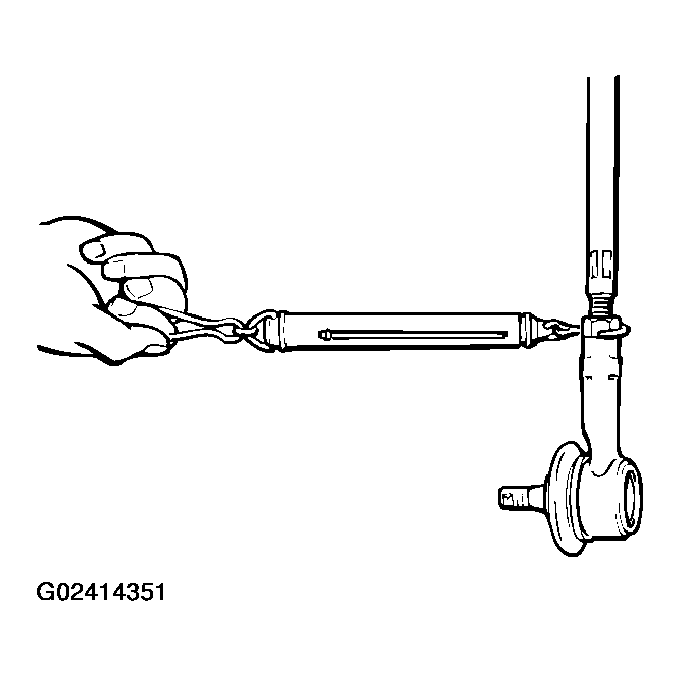

- Measure the tie rod swing resistance with a spring scale.
- Standard value:
- 6 - 19 N (26.7 - 84.5 lb) [1.5 - 4.9 N.m (13.2 - 43.4 in-lb)]
- If the measured value exceeds the standard value, replace tie rod.
- If the measured value is below the standard value, the tie rod can be re-used if it swings smoothly without excessive play.
