>> C << Cam Ring Installation

WARNING: This page is about a different variant/trim than selected.
CAUTION: Be sure to install the cam ring in the correct direction as shown.

Install the cam ring as shown in the illustration.

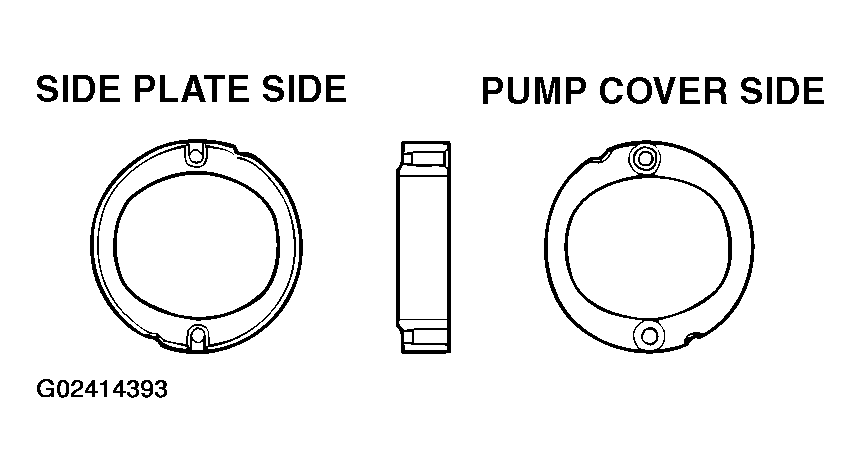

Fig 1: Installing Cam Ring
G02414393Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
