>> A << Suction Hose Installation

WARNING: This page is about a different variant/trim than selected.

Install the suction hose so that the marking is positioned as shown in the illustration.

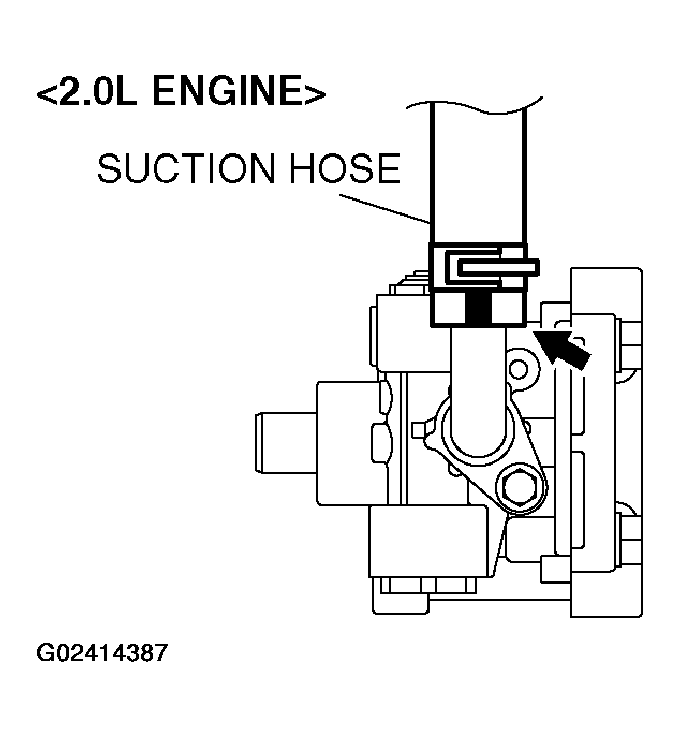

Fig 1: Installing Suction Hose - 2.0L Engine
G02414387Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

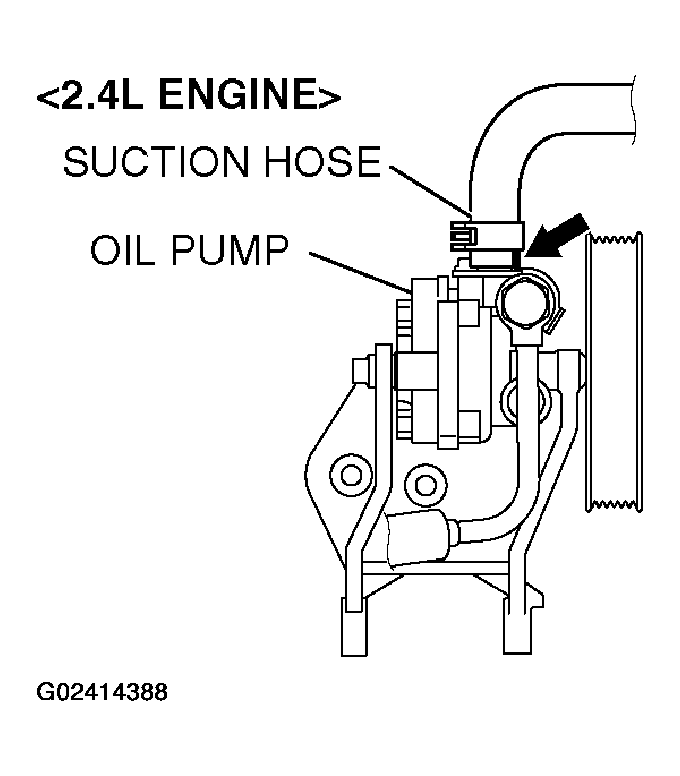

Fig 2: Installing Suction Hose - 2.4L Engine
G02414388Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
