Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

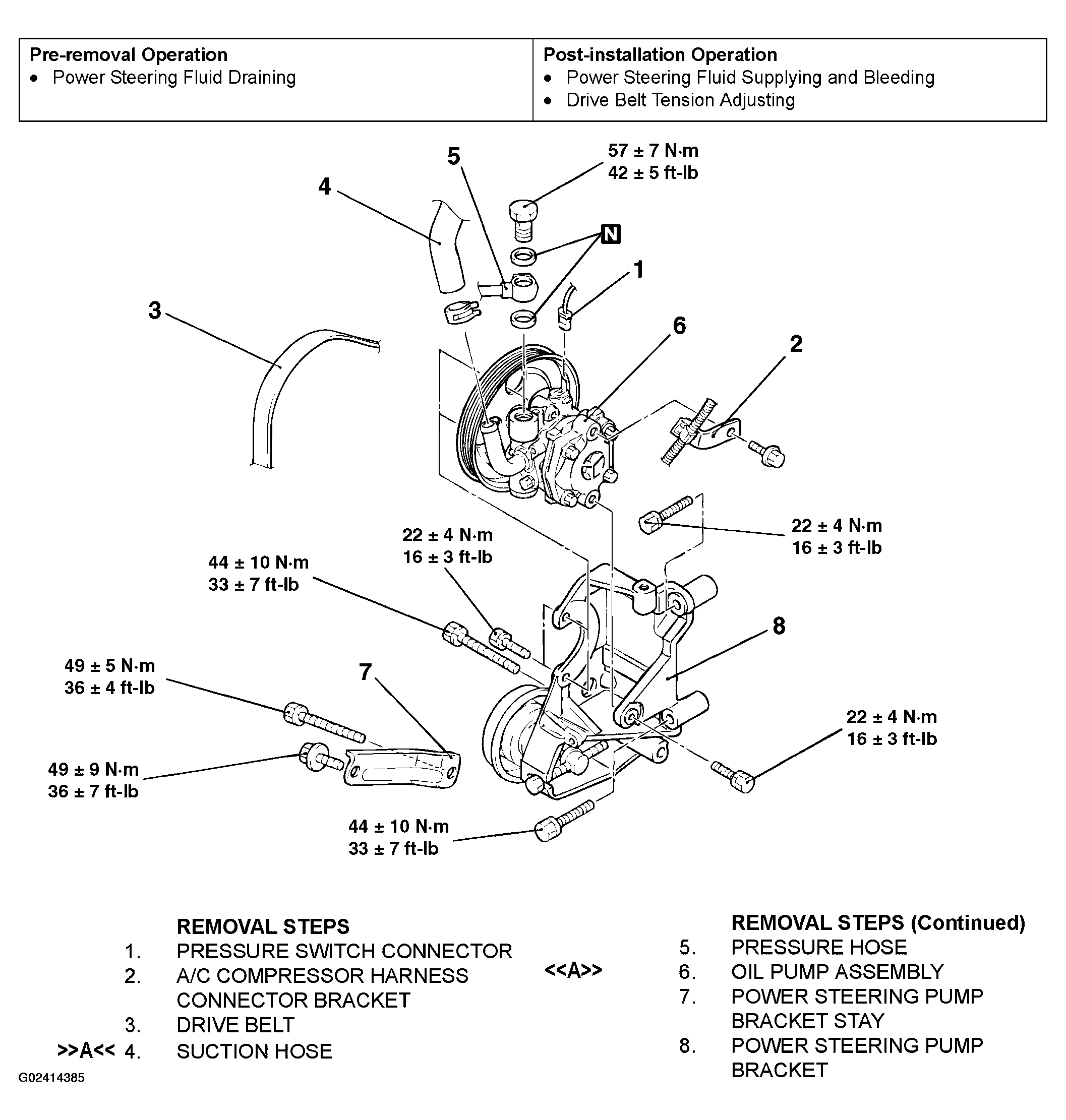

Fig 1: Installing Power Steering Oil Pump Assembly - 2.0L Engine
G02414385Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

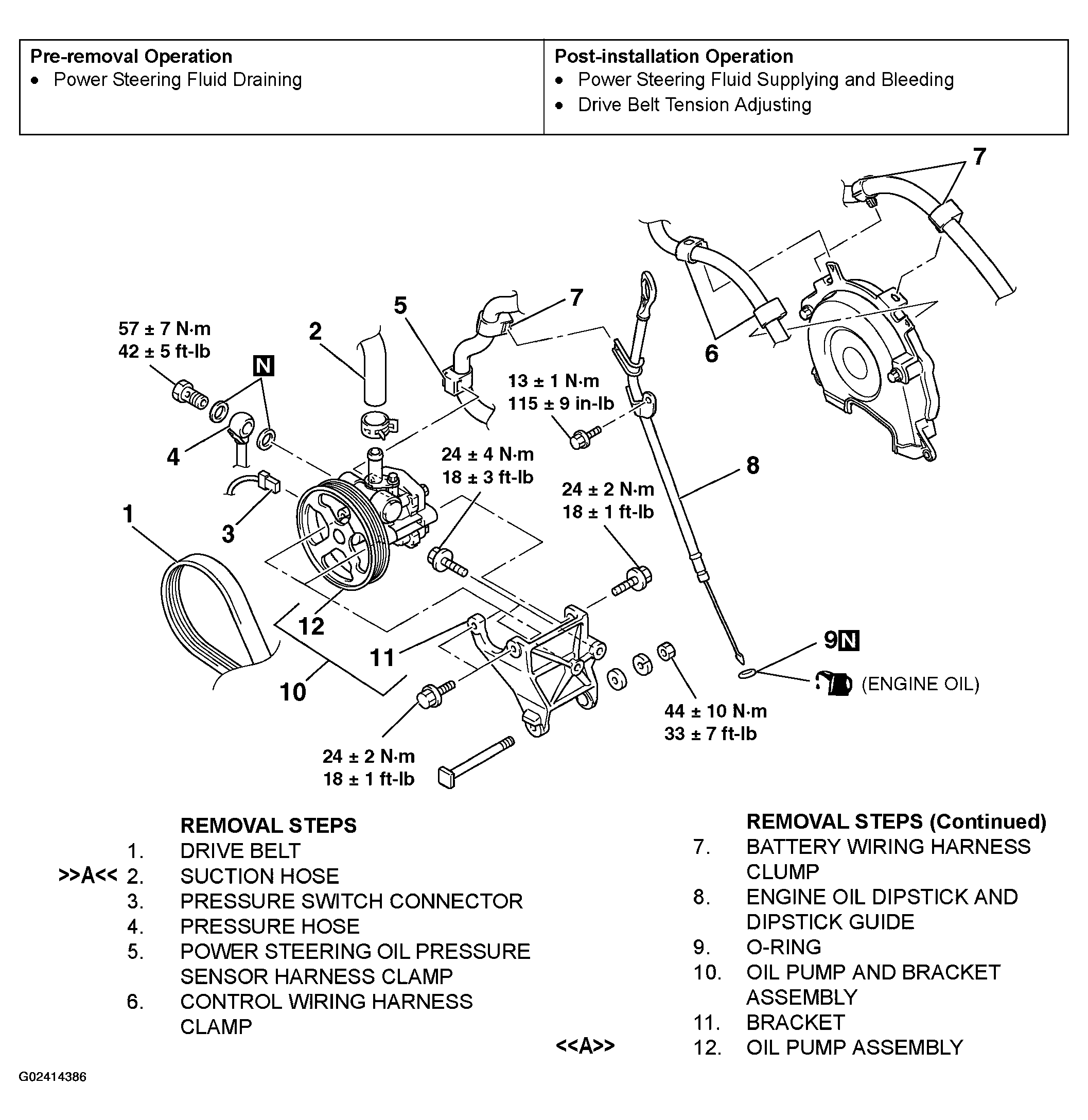

Fig 2: Installing Power Steering Oil Pump Assembly - 2.4L Engine
G02414386Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
