>> A << Steering Shaft Assembly Installation

WARNING: This page is about a different variant/trim than selected.

< When re-using steering shaft assembly >

Fig 1: Tightening Bolts
G02414341Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: Do not release the tilt lever until the steering column shaft assembly has been installed.

Ensure that the tilt lever is in the lock position, and install the steering shaft assembly. Tighten the four bolts in the order shown by hand, and then tighten them to the specified torque in the order shown.

< When replacing steering shaft assembly (Replacement tilt lever with fixing band)>

CAUTION:
  1. Do not release the tilt lever until the steering shaft assembly has been installed.
  2. Remove the fixing band after the installation has been done.

Ensure that the tilt lever is in the lock position, and install the steering shaft assembly. Tighten the four bolts in the order shown by hand, and then tighten them to the specified torque in the order shown.

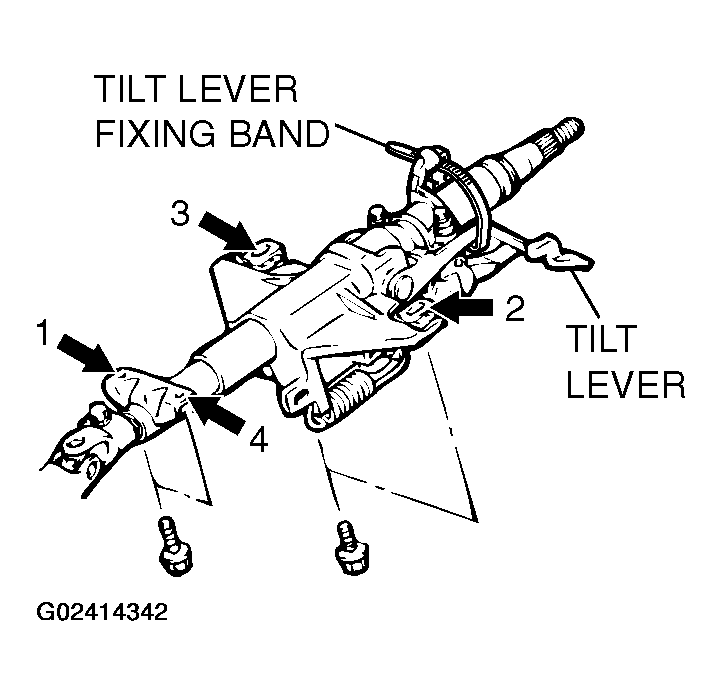

Fig 2: Tightening Bolts
G02414342Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

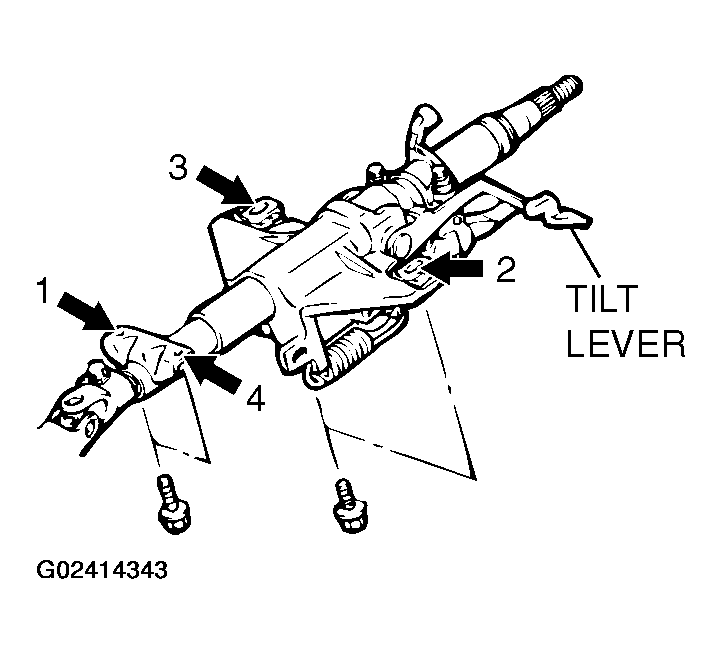

< When replacing steering shaft assembly (Replacement tilt lever without fixing band)>

CAUTION: Do not release the tilt lever until the steering shaft assembly has been installed.

Ensure that the tilt lever is in the lock position, and install the steering shaft assembly. Tighten the four bolts in the order shown by hand, and then tighten them to the specified torque in the order shown.
