<< B >> Steering Wheel And Airbag Module Assembly Removal

WARNING: This page is about a different variant/trim than selected.

By sliding section A of the clock spring connector shown in the illustration in the arrow direction, disconnect the connector.

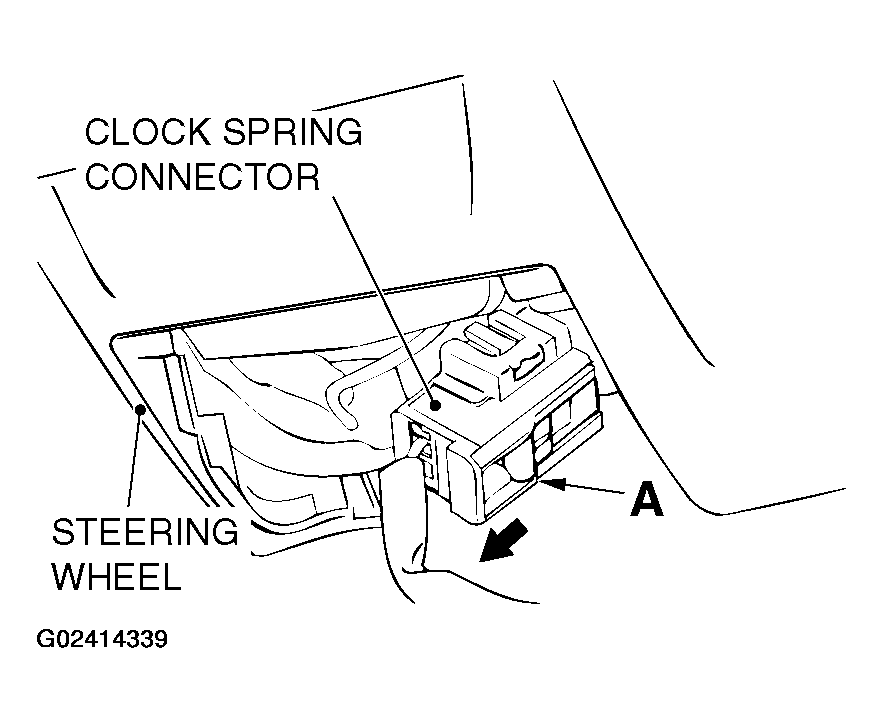

Fig 1: Identifying Clock Spring Connector
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Loosen the bolt completely. Then, remove the steering wheel and airbag module assembly.

NOTE: Use a hexagonal bit socket or a hexagonal wrench having an effective length of 75 mm (3.0 inches) or more in the hexagonal section and the diameter of 8 mm (0.31 inches) or more.

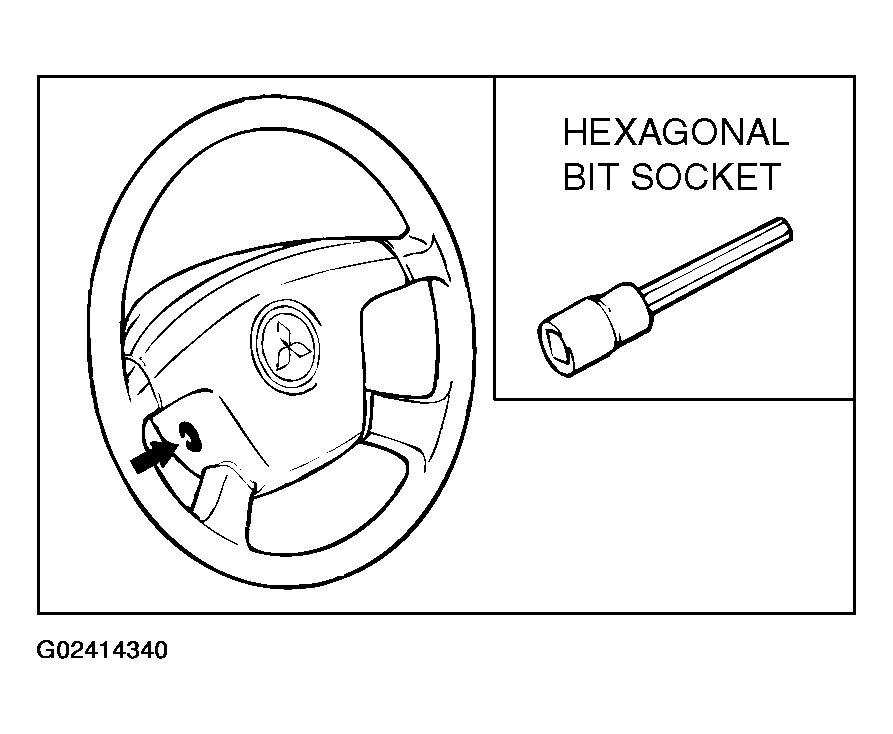

Fig 2: Removing Steering Wheel And Airbag Module Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
