>> D << Center Differential Drive Gear Installation

WARNING: This page is about a different variant/trim than selected.

Apply sealant (3M™AAD Part No.8730 or 8731 or equivalent) to the entire threaded part on the bolts.

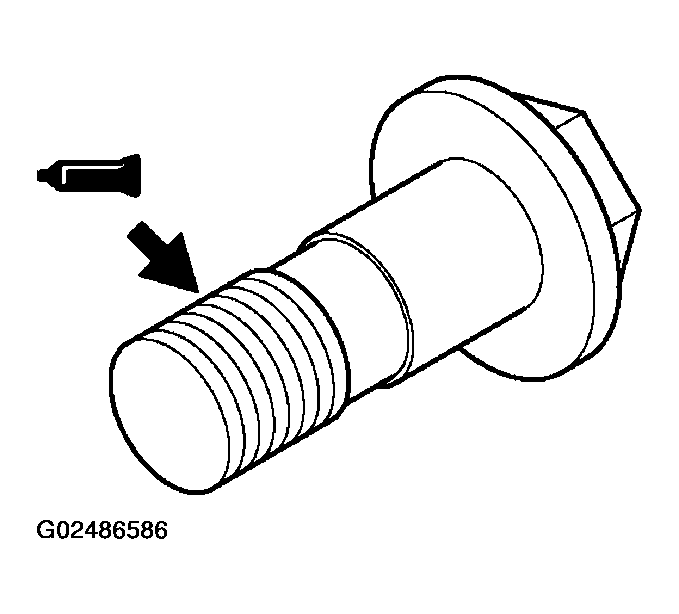

Fig 1: Applying Sealant To Bolts Entire Threaded Part
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Tighten bolts to the specified torque in the order indicated in the illustration.
- Tightening torque: 158 +/- 7 N.m (117 +/- 5 ft-lb)

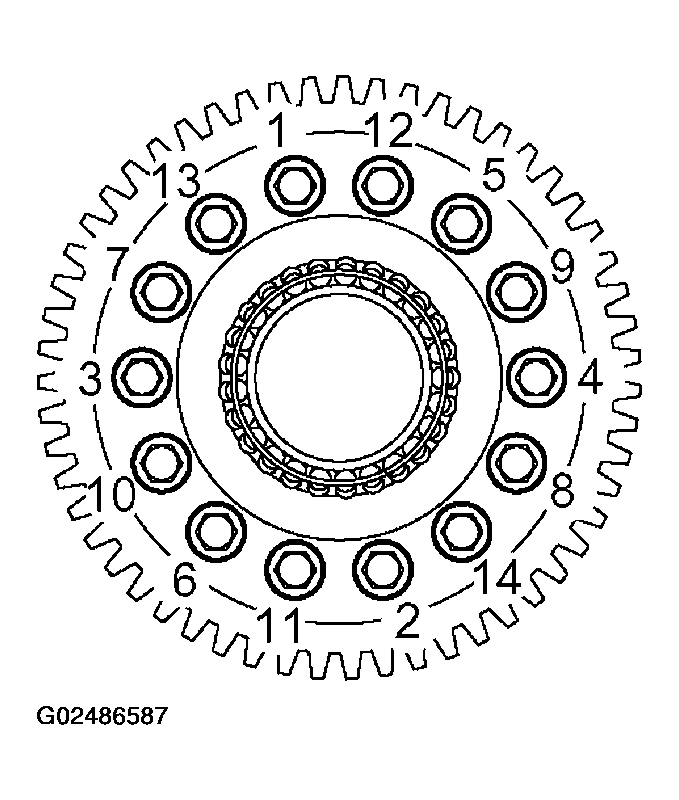

Fig 2: Identifying Center Differential Drive Gear Bolts Tightening Sequence
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
