>> D << 4TH Gear Sleeve Installation

WARNING: This page is about a different variant/trim than selected.

Using special tools MD998801, MD998812, MD998813 and MD998822, install the 4th gear sleeve.

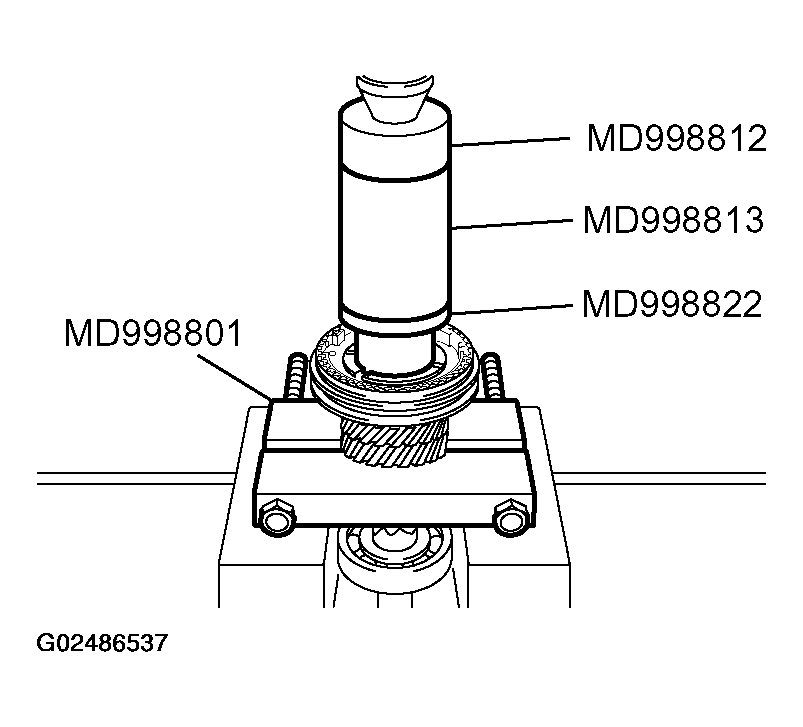

Fig 1: Installing 4th Gear Sleeve
G02486537Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
