>> I << 6TH Gear Sleeve Installation

WARNING: This page is about a different variant/trim than selected.

Using special tools MD998801, MD998812 and MD998818, install the 6th gear sleeve.

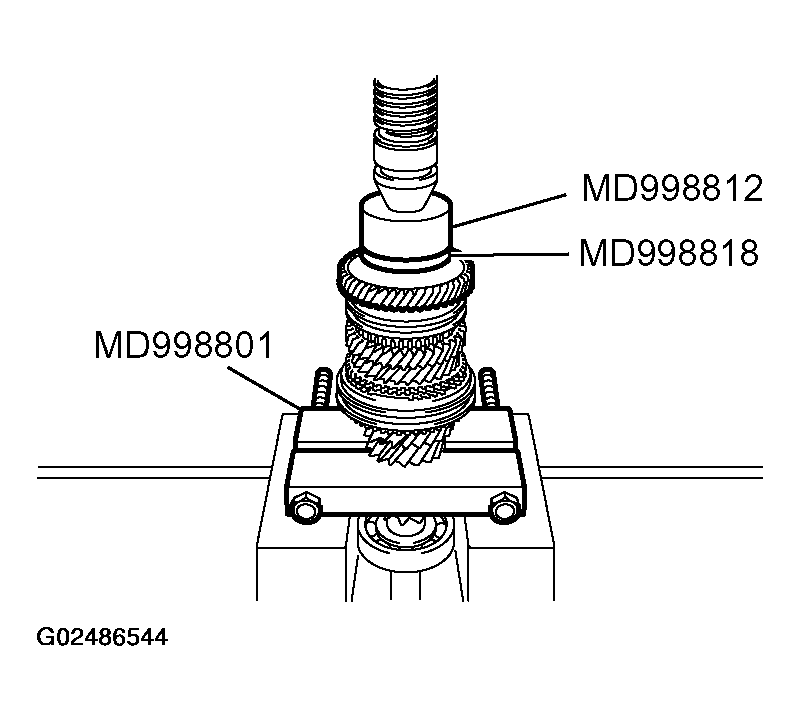

Fig 1: Installing 6th Gear Sleeve
G02486544Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
