>> J << Snap Ring Installation

Select a snap ring that allows the clearance between the snap ring and snap ring groove to fall within the standard value range.

• Standard value: 0 - 0.1 mm (0 - 0.0039 inch)

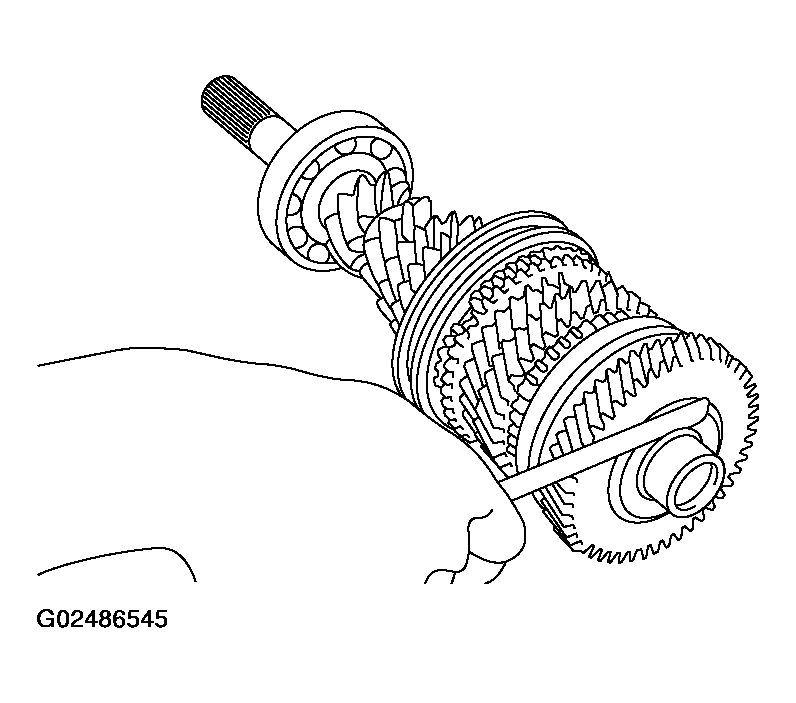

Fig 1: Checking Clearance Between Snap Ring And Snap Ring Groove

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
