>> K << Input Shaft Rear Bearing Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION: Install the input shaft rear bearing with its snap ring groove facing the side shown in the illustration.

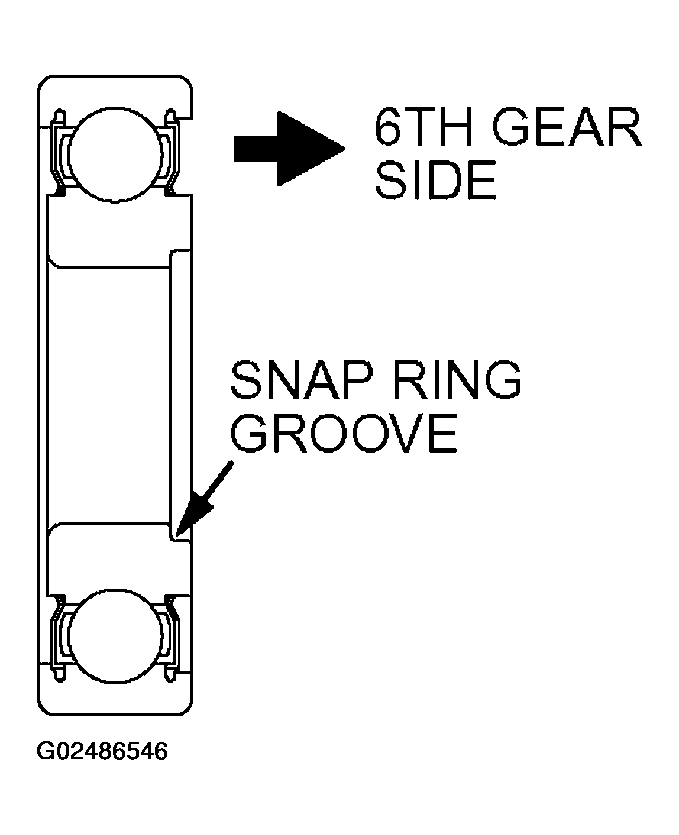

Fig 1: Identifying Input Shaft Rear Bearing Installation Direction

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Using special tools MD998801, MD998812 and MD998818, press fit the input shaft rear bearing onto the input shaft.

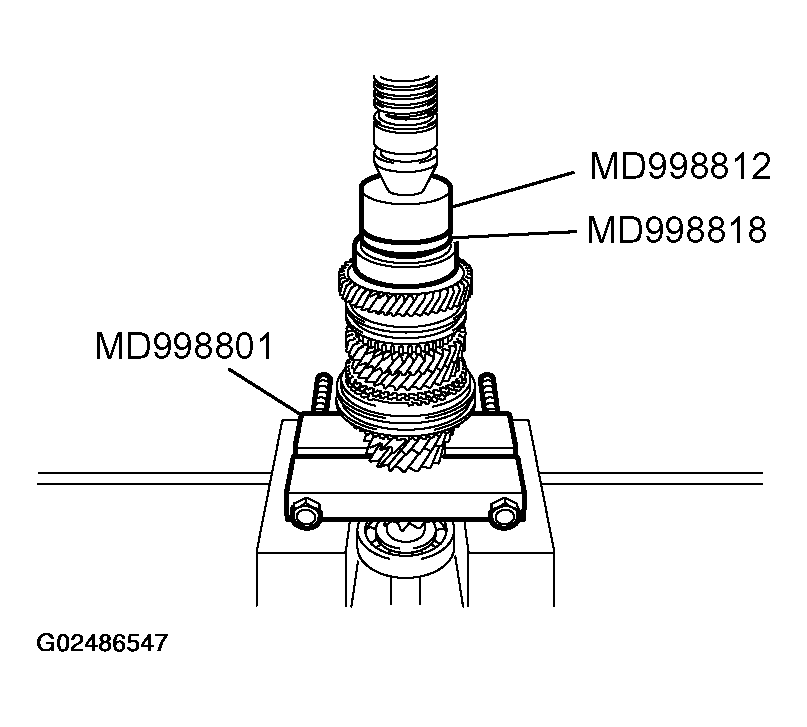

Fig 2: Installing Input Shaft Rear Bearing

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
