>> C << Shift Check Sleeve Installation

WARNING: This page is about a different variant/trim than selected.
CAUTION: The transmission assembly contains parts that resemble shift check sleeves. Make sure not to mistakenly install a similar part instead of the shift check sleeve (length: 36.25 mm).

Install the shift check sleeve.

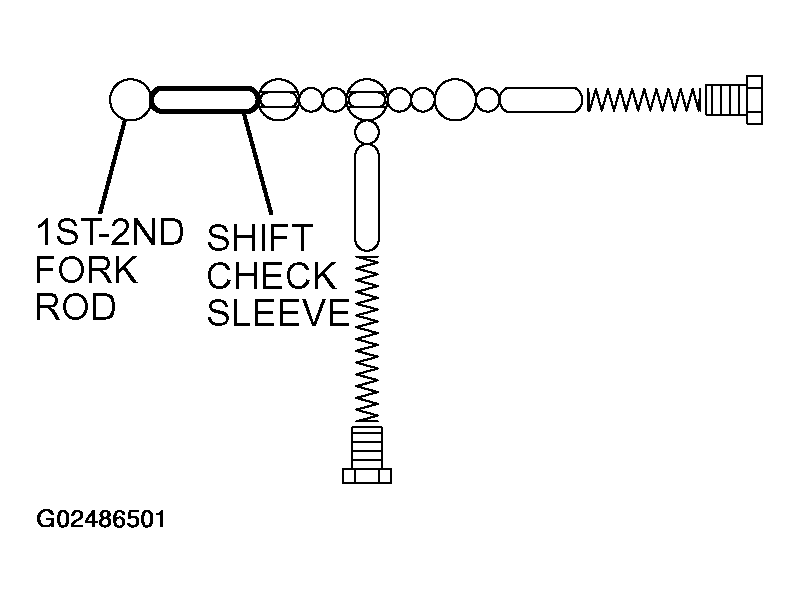

Fig 1: Installing Shift Check Sleeve
G02486501Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
