>> G << Interlock Ball Installation

WARNING: This page is about a different variant/trim than selected.
CAUTION: Make sure that the interlock steel balls do not fall out of their locations.

Install the two interlock steel balls.

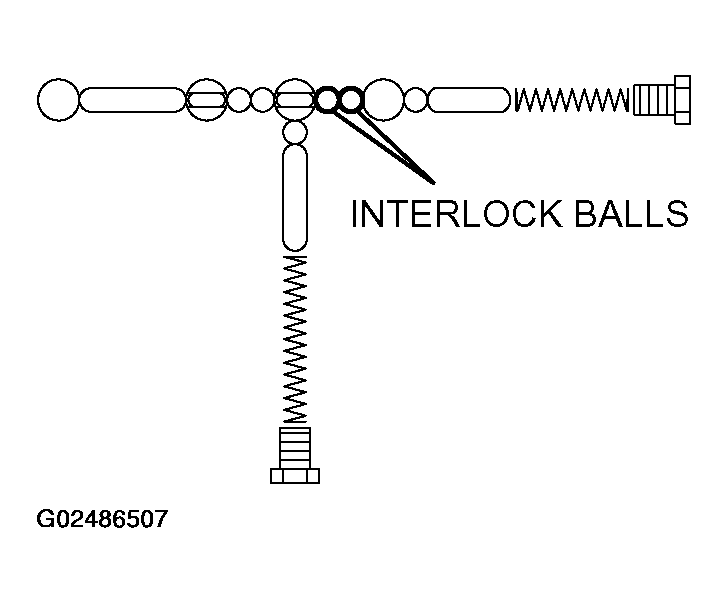

Fig 1: Installing Interlock Steel Balls
G02486507Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
