>> I << Reverse Lever Assembly Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the shifter cap on the cam of the reverse lever assembly, and then install the reverse shift fork.
  2. Raise the reverse shift fork and fit its cam in the reverse bracket.

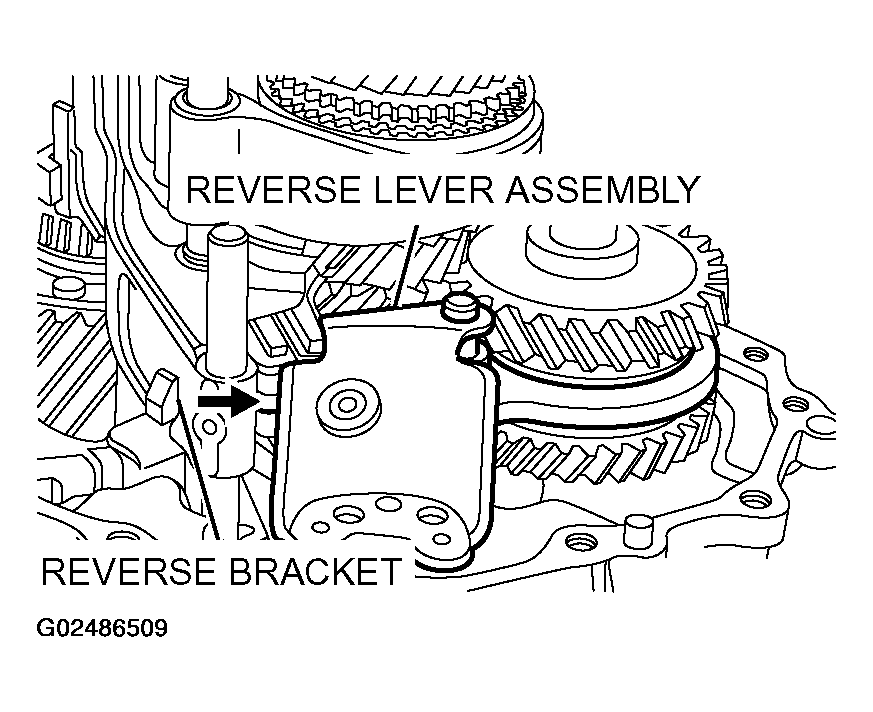

    Fig 1: Installing Reverse Lever Assembly
    G02486509Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
