>> N << Transaxle Case Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION: The snap ring is not reusable.

Install the snap ring temporarily in the main shaft rear bearing location in the transaxle case.

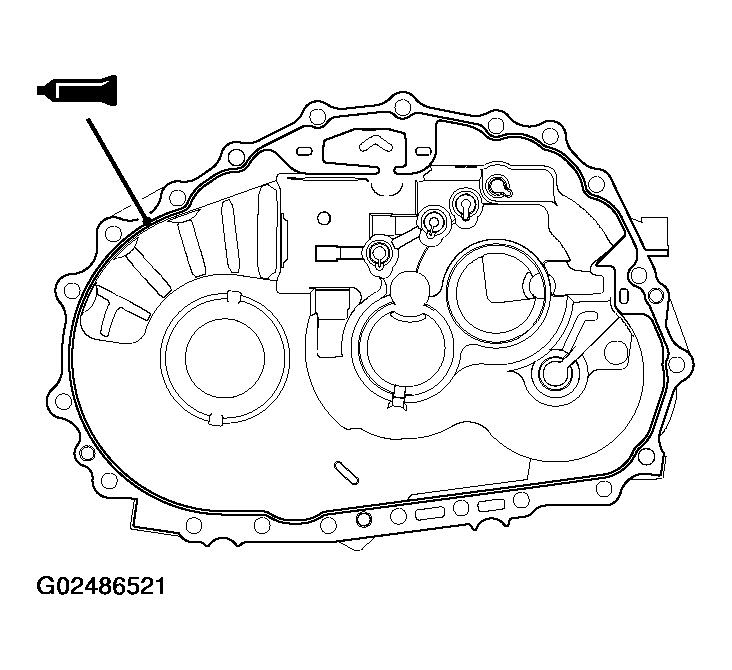

Apply sealant (Mitsubishi genuine sealant part No. MD997740 or equivalent) as indicated in the above illustration.
Expand the snap ring in the main shaft rear bearing location through the bore plug mounting hole and place the transaxle case over the clutch housing.

Fig 1: Applying Sealant To Transaxle Case
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: Bolts (B) are not reusable.
Tighten all the bolts to the specified torque.
- Tightening torque: 63 +/- 1 N.m (46 +/- 1 ft-lb)

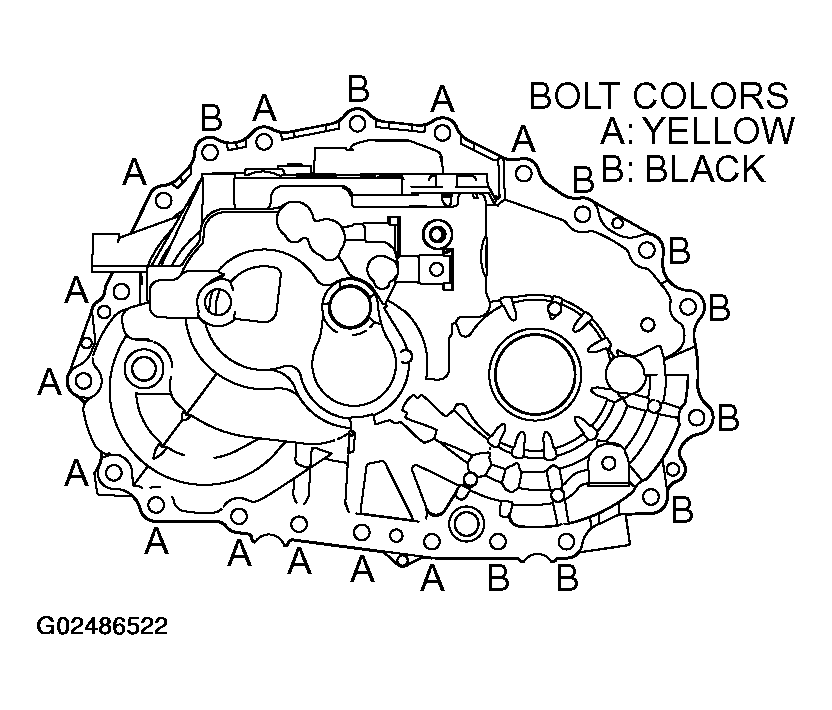

Fig 2: Installing Transaxle Case Bolts
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
