Disassembly And Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

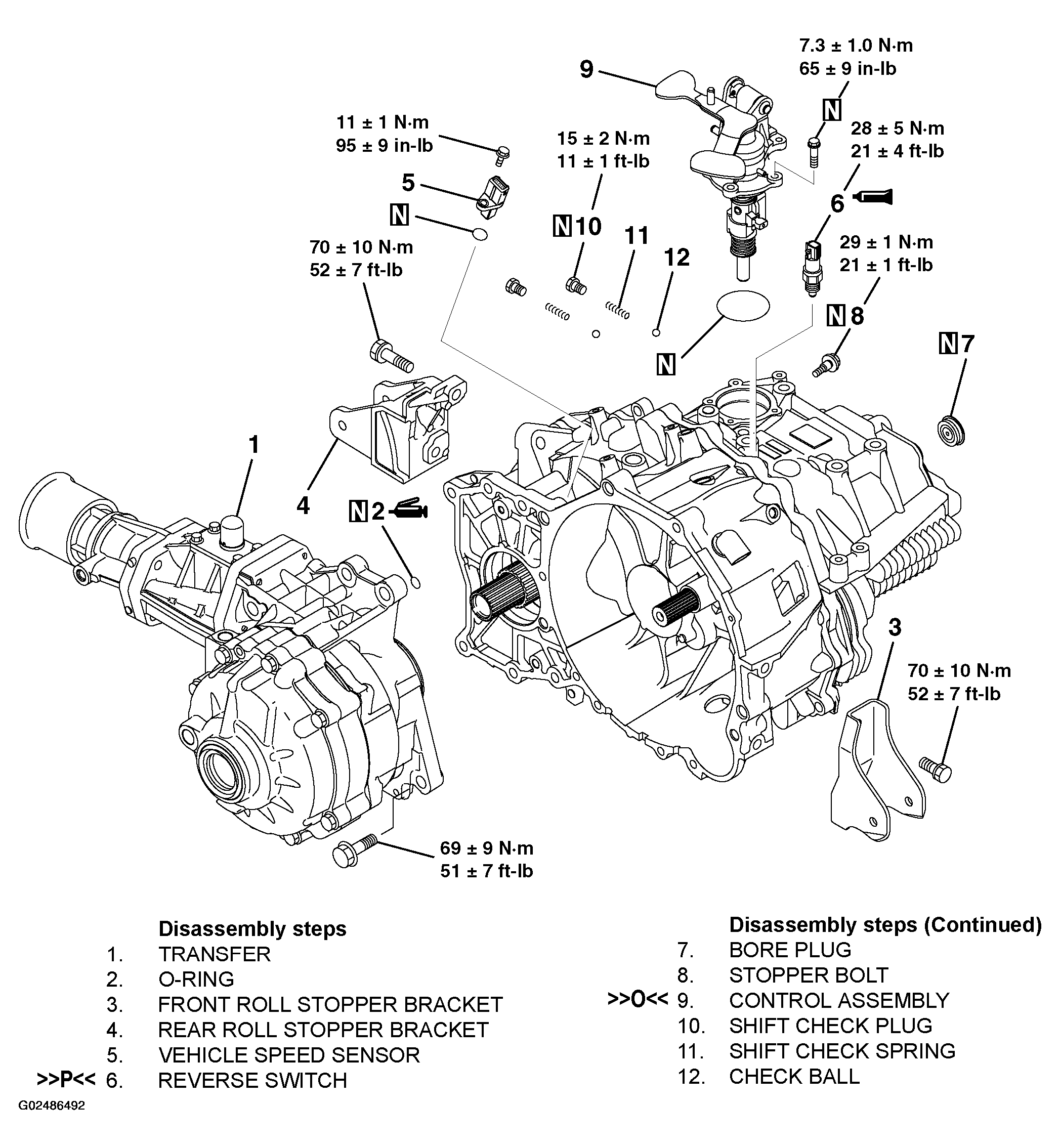

Fig 1: Disassembling/Assembling Transaxle (Transmission) (1 Of 3)
G02486492Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

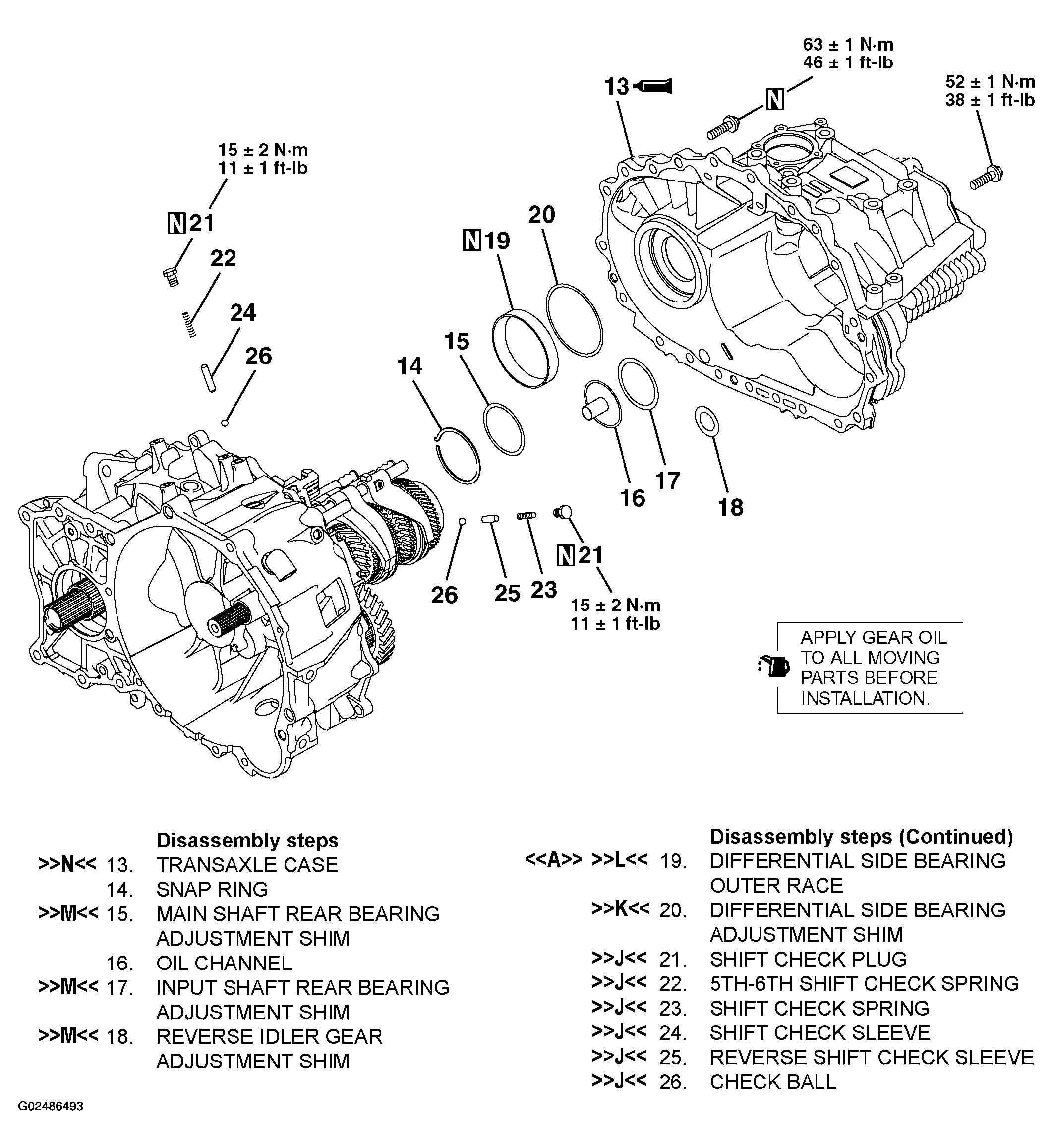

Fig 2: Disassembling/Assembling Transaxle (Transmission) (2 Of 3)
G02486493Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

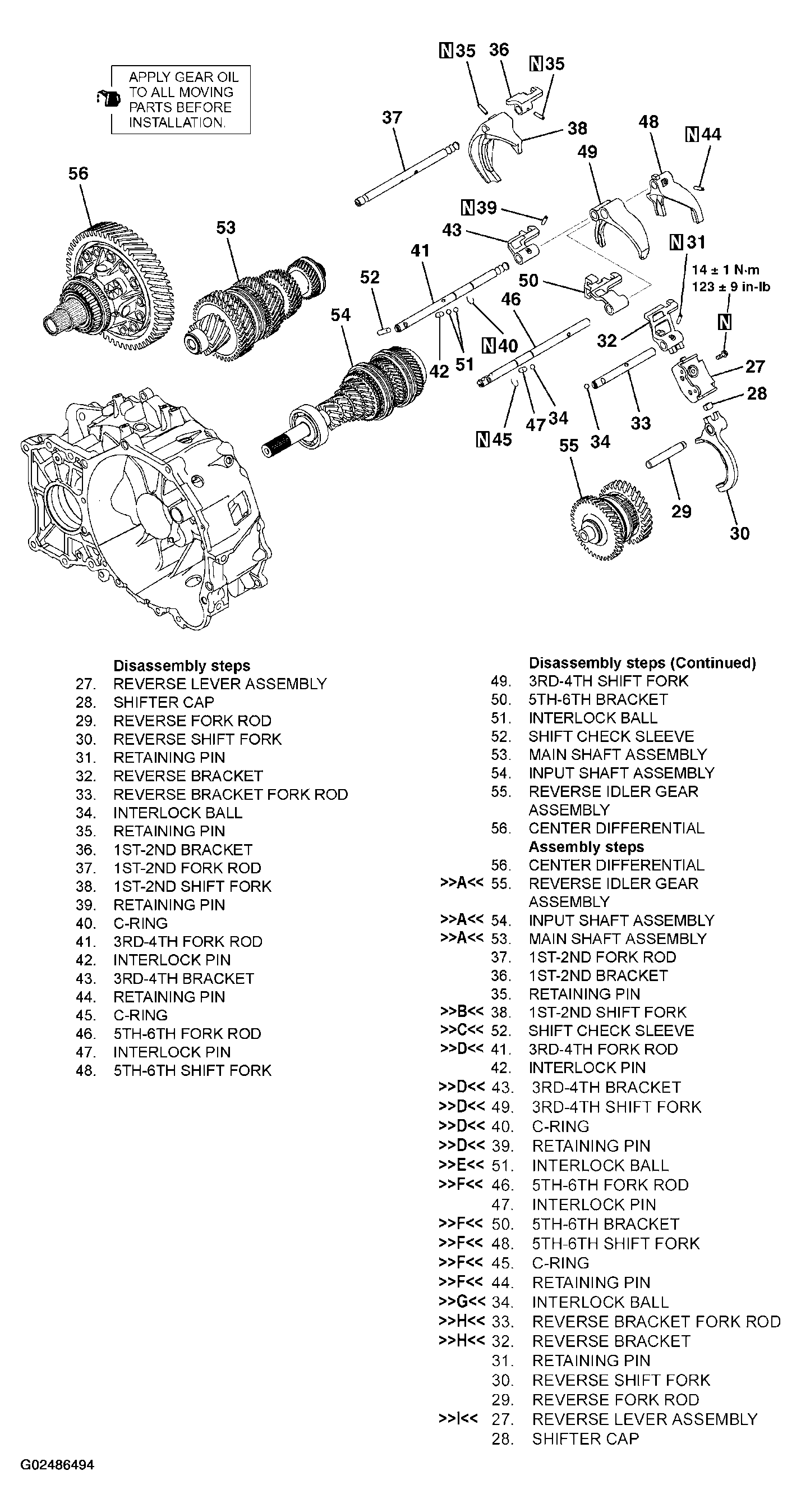

Fig 3: Disassembling/Assembling Transaxle (Transmission) (3 Of 3)
G02486494Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
