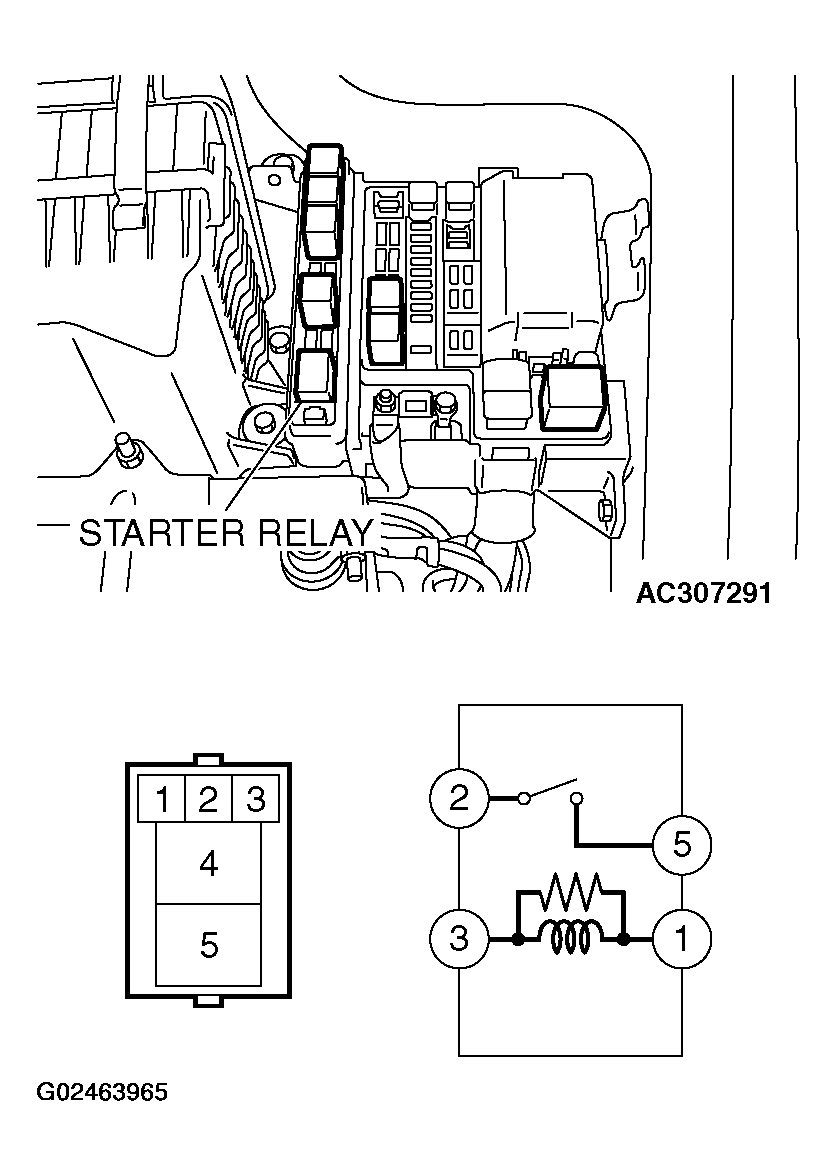

STARTER RELAY CHECK (M/T)
| BATTERY VOLTAGE |
TERMINAL NO. TO BE CONNECTED TO TESTER |
CONTINUITY TEST RESULTS |
| Not applied |
2 - 5 |
Open circuit |
| Connect terminal No.1 and battery (-) terminal. |
2 - 5 |
Less than 2 ohms |
| Connect terminal No.3 and battery (+) terminal. |
2 - 5 |
Less than 2 ohms |
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
